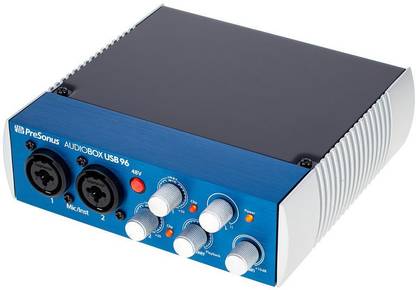

presonus Audiobox USB 96 Recording System 2 Tracks Digital Multi-track Recorder
Price: Not Available
Currently Unavailable
Description
2 dual-purpose front-panel input channels, each with high-quality mic preamplifiers 2 combo mic/instrument inputs Individual channel-trim controls with 0 to +35 dBu mic gain range 48V phantom power for condenser microphones Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring) Headphone jack with level control Main-output level control LED clip indicator for each channel Input/Output 1 USB 2.0 port 2 combo XLR/¼” mic/instrument inputs 2 balanced ¼” main (L/R) line outputs 1 stereo ¼” headphone output MIDI in/out Digitalia 24-bit resolution and 44.1, 48, 88.2, and 96 kHz sampling rate Professional-grade A/D/A converters (+105 dBu dynamic range) Zero-latency monitoring via internal mixer Compatible with most Mac® and Windows® recording software Included Software Studio One® Artist Studio Magic Plug-in Suite Physical 1/3U rack-mountable (with optional 3UMR rack-mounting system) Road-rugged construction with all-metal chassis and metal knobs Weighs just 5 lbs (2.3 kg) Powered via USB bus
Read More
Specifications
In The Box
1
General
Brand
presonus
Model Number
Audiobox USB 96 Recording System
Number of Tracks
2
Number of Inputs
2
Number of Outputs
2
Audio Quality
High-Definition Recording Made Easy
Formats Supported
Compatible with most Mac and Windows® recording software
Extendable Memory Capacity
2 GB
Display
No
Dimensions
Width
17 cm
Height
9 cm
Depth
25 cm
Weight
5 cm
Additional Features
Technical Specifications Microphone Preamp Type XLR Female Balanced Frequency Response (±3.0 dB) 20 Hz to 20 kHz Input Impedance (Balanced) 1200? THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008% S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB Common Mode Rejection Ratio (1 kHz, 55 dB Gain) > 45 dB Gain Control Range (± 1 dB) 0 dB to 35 dB Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu Phantom Power (±2 VDC) +48 VDC Instrument Input Type ¼" TS Female Unbalanced Input Impedance 0.5 M? Line Outputs Type ¼" Balanced Output Impedance 51?, Headphone Output Type ¼" TRS Active Stereo Maximum Output 60 mW/Ch @ 60? Load Frequency Response (±1.0 dB) 20 Hz - 30 kHz, MIDI I/O Type Dual 5-pin Female DIN, Digital Audio ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB Bit Depth 24 Reference Level for 0 dBFS +4 dBu Internal Sample Frequency Selections (kHz) 44.1, 48, 88.2, 96 Power USB 2.0 bus-powered
Ratings & Reviews
5
★
1 Ratings &
1 Reviews
5★
4★
3★
2★
1★
1
0
0
0
0
5
Must buy!
very nice and genuine product... better than other interface... make and all very nice... you get studio one software with it...
