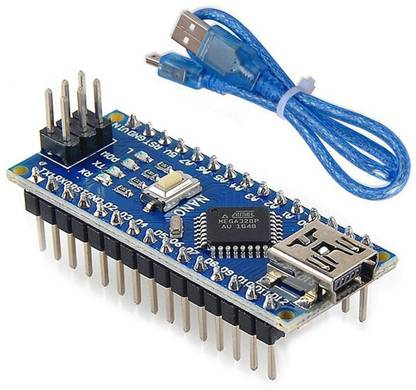

PrimeRobotics Arduino Nano V3 with USB Cable - CH340 Driver - Soldered Micro Controller Board Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Plastic
Weight: 100

Description

Kit Contains: Soldered Nano compatible, Nano Cable Mini USB to USB ( cable colour might change from the one shown in picture) Note: Need to install CH341SER driver Microcontroller Atmel ATmega328 Operating Voltage (logic level): 5V Input Voltage (recommended): 7V ~ 12V Input Voltage (limits): 6V ~ 20 V Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current per I/O Pin: 40mA Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader) SRAM: 2KB (ATmega328) EEPROM: 1KB (ATmega328) Clock Speed: 16MHz

Specifications

In The Box

1 x Arduino Nano V3 Soldered, 1 x Nano Cable Mini USB to USB

General

Brand	PrimeRobotics
Model Number	Arduino Nano V3 with USB Cable - CH340 Driver - Soldered
Skillset	Creativity & Imagination
Type	Micro Controller Board
ROHS Complaint	No
Material	Plastic
Age Group	16+ Years
Key Features	Kit Contains: Soldered Nano compatible, Nano Cable Mini USB to USB, Note: Need to install CH341SER driver, Microcontroller Atmel ATmega328 Operating Voltage (logic level): 5V Input Voltage (recommended): 7V ~ 12V Input Voltage (limits): 6V ~ 20 V, Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current per I/O Pin: 40mA, Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader) SRAM: 2KB (ATmega328) EEPROM: 1KB (ATmega328) Clock Speed: 16MHz

Dimensions

Width	4 cm
Height	2 cm
Weight	100

Power Features

Battery Type	NA
No Of Batteries	0
Battery Size	NA
Power Source	DC
Other Power Features	NA

Questions and Answers

Q:Cable includes or not

A:Yes
