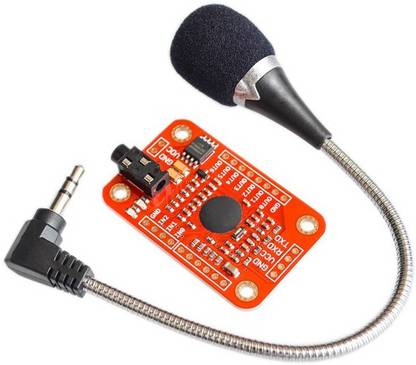

This product is a speaker-dependent voice recognition module. It supports up to 80 voice commands in all. Max 7 voice commands could work at the same time. Any sound could be trained as command. Users need to train the module first before let it recognizing any voice command. This board has 2 controlling ways: Serial Port (full function), General Input Pins (part of function). General Output Pins on the board could generate several kinds of waves while corresponding voice command was recognized. Feature Support maximum 80 voice commands, with each voice 1500ms (one or two words speaking) Maximum 7 voice commands effective at same time Arduino library is supplied Easy Control: UART/GPIO User-control General Pin Output
Read More
Specifications
In The Box
Voice Recognition Module x 1, Microphone x 1
General
Brand
PrimeRobotics
Model Number
Speak Recognition, Voice Recognition Module V3
Skillset
Creativity & Imagination
Type
Sound Recorder and Sound Circuit
ROHS Complaint
No
Material
Plastic
Age Group
16+ Years
Key Features
Support maximum 80 voice commands, Maximum 7 voice commands effective at same time, Digital Interface : 5V TTL level for UART interface and GPIO., Analog Interface: 3.5mm mono-channel microphone connector + microphone pin interface, Voltage: 4.5-5.5V
Dimensions
Width
5 cm
Height
3 cm
Weight
100
Power Features
Battery Type
NA
No Of Batteries
0
Battery Size
NA
Power Source
DC
Other Power Features
NA
