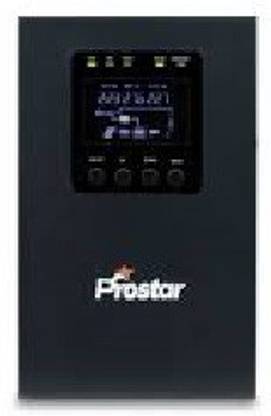

PROSTARM PM-900 PRO 1Kva 240 V Online/double-conversion Rack-mount Model UPS with Overload Protection with Digital Display 2 Outlet Plugs

Name: PROSTARM PM-900 PRO 1Kva 240 V Online/double-conversion Rack-mount Model UPS with Overload Protection with Digital Display 2 Outlet Plugs
Brand: PROSTARM
SKU: UPSFJZEXGJQMCZRU

Price: Not Available

Currently Unavailable

Warranty

2 year Domestic Warranty

Highlights

Type: Online/double-conversion
Output Power Wattage: 900 W
Input Voltage: 230 V|Output Voltage: 240 V
Input Frequency: 50/60Hz|Output Frequency: 50/60Hz
W x H x D: 400 cm x 220 cm x 330 cm

Description

High Frequency On-line double conversion technology. Digital signal processor control technology. Settable delayed start when power is restored.

Specifications

Output Features

Output Voltage	240 V
Output Frequency	50/60Hz
Output Power Wattage	900 W
Efficiency	Mains mode-90%, Eco mode-95% %
Output Waveform	Sine Wave
Transfer Time	4 ms
Outlet Plug Type	4.5 Ams
Number of Outlet Plugs	2
Surge Protection	Yes 2 Output Socket
Output Power Factor	0.8
Other Output Features	AC mode switch to battery mode, zero conversion, AC mode switch to bypass mode,4ms

Environmental Features

Minimum Operating Temperature	0 degree C
Maximum Operating Temperature	40 degree C
Noise Level	<40dB
Operating Humidity	10 to 90 %
Maximum Operating Altitude	1000 m
Storage Temperature	-25%~55% without batteries degree C
Storage Humidity	5-95 %
Maximum Storage Altitude	5000 m
Other Environmental Features	IP rating 21

Warranty

Warranty Summary	2 year Domestic Warranty
Service Type	By sending an engineer
Covered in Warranty	All the technical related issues of the Ups.
Not Covered in Warranty	Damage done by a customer.
Domestic Warranty	2 Year
International Warranty	2 Year

Input Features

Input Voltage	230 V
Input Frequency	50/60Hz
Phase	Single Phase with two lines+Ground Wire
Input Plug Type	6Ams
Other Input Features	Power Factor: >0.99, <5% (100% Non Linear Load)

Battery Features

Battery Type	Lead Acid sealed, Maintenance free
Hot-swappable Battery	Yes
Recharge Time	90% restored in 3 hours
Number of Batteries	3 batteries of 42 Ah and 16 batteries of 7 Ah
Battery Voltage	36 V
Battery Capacity	36V/26Ah
Full Load Runtime	10 min
Half Load Runtime	22 min
Replacement Battery	Yes
Replacement Battery Type	Lead acid sealed
Other Battery Features	Longer Backup, N+X parallel connection, Ripple free charger for enhanced battery life

In The Box

UPS::Rs:232 cable::Battery Cable::Manual

General

Brand	PROSTARM
Model Number	1Kva
Type	Online/double-conversion
Form Factor	Rack-mount Model
Model Name	PM-900 PRO
Overload Protection	Yes
Overload Capacity	130% for 30 mins
Certification	ISO 9001 /14001 OHSAS 18001, IEC , CE, ROHS, NSIC , MNRE
Technology Used	Bypass Technology, ABM Technology
Cold Start	Yes
Color	Black

Dimensions

Width	400 cm
Height	220 cm
Depth	330 cm
Weight	5 kg
Cord Length	1.2 m

Additional Features

Key Features

High Reliable Parallel Redundancy Technology, User-Friendly LCD Display, Intelligent Adjustable Output Voltage Features

Convenience Features

Digital Display	Yes
Display Type	LCD+LED
Display Indicator Functions	Battery Status
Audible Indicator Functions	Overload, Low Battery
Emergency Power Off	Yes
Serial Port	Yes
Low Battery Indicator	Yes
LED Indicator Function	Battery power
Other Convenience Features	Protection from Short Circuit, Protection from overload, Protection from over-temperature, Battery discharge protection
