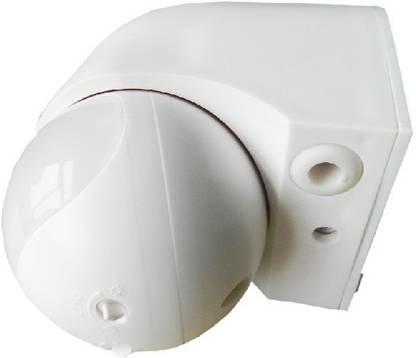

Pyrotech PIR-203-RC-16A Wireless Sensor Security System

Pyrotech PIR-203-RC-16A Wireless Sensor Security System

Price: Not Available
Currently Unavailable
Warranty
Over voltage, excess surge conditions, reverse supply resulting in damage of power supply input circuitry(PCB damage) and excessive knob rotation will cause damage causes will not be considered under warranty period.
Highlights
  • 39 ft Detection Range
  • 6 m Max Alarm Distance
  • 1 min Charging Time
  • Wall Mount
Description
A passive infrared sensor (PIR sensor) is an electronic sensor that measures infrared (IR) light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. Our PIR based Occupancy Sensors is a fully automatic indoor light controller capable of controlling upto 2000W incandescent or 1000W fluorescent lighting. This product is widely used in houses, hotels, schools & storage etc.
Read More
Specifications
In The Box
  • 1 Sensor Security System
General
Brand
  • Pyrotech
Model Number
  • PIR-203-RC-16A
Wired/Wireless
  • Wireless
Number of Sensors
  • 1
Brand Color
  • Red, Blue
Display Type
  • NA
Audible Alarm
  • 100dB
Installation Type
  • Wall Mount
Detection Range
  • 39 ft
Minimum Alarm Distance
  • 0.2 m
Maximum Alarm Distance
  • 6 m
Color
  • White
LED Indicators
  • Yes
Detection Angle
  • 180 degree
Stand By
  • No
Suitable For
  • Indoor Application, Storeroom, Warehouses, Corridors, Office Bulidings
Power Features
Power Requirement
  • 90-270VAC
Power Consumption
  • 1W
Charge Time
  • 1 min
Additional Features
Certification
  • IEC 61000-4-11, IEC 61000-4-3, IEC 61000-4-8, IEC 61000-4-2, IEC 61000-4-6, IEC 61000-4-4, IEC 61000-4-5
Technology Used
  • Passive Infra Red
Remote Control
  • Yes
Dimensions
Width
  • 6.3 cm
Height
  • 8.7 cm
Weight
  • 160 g
Warranty
Warranty Summary
  • Over voltage, excess surge conditions, reverse supply resulting in damage of power supply input circuitry(PCB damage) and excessive knob rotation will cause damage causes will not be considered under warranty period.
Service Type
  • Customer need to send the product at our head office for final inspection.After that we can analyse about the fault
Covered in Warranty
  • Defects due to material or workmanship or manufacturing process only
Not Covered in Warranty
  • Warranty does not cover any external accessories (such as battery, cable, carrying bag), damage caused to the product due to improper installation by customer, normal wear and tear to the knob of sensor caused to the product by accident, lightening, ingress of water, fire, dropping or excessive shock, any damage caused due to tampering of the product by an unauthorized agent, liability for loss of data, recorded images or business opportunity loss.
