Sales Package: 1 Brackets, One Anti rust wall clamp set, Straps and Anchor bolts, Clean and Drain outlet connecting bushes, Filter connecting Hose clips and clamps, Manual brush, User Manual
Width: 39 cm
Weight : 6.8 kg
Description

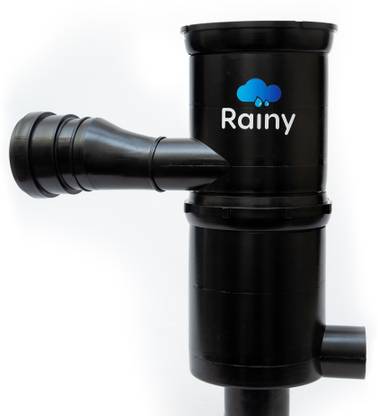

Suitable for Home Roof Area Upto 110 Square Meters, Example: A house with a roof area of 100 sq Meters (30x40 =1200 sft) with an annual Rainfall of 1000 mm can provide an assured supply of 1,00,000 litres of water Per Year Rainy Dual-Intensity self-cleaning Rooftop Rainwater Harvesting Filters are Suitable for Individual Houses, Apartments, commercial complexes, Schools, Govt. Establishments, Institutions and Factories Dimensions : Length: 490mm, Breadth: 410mm, Height : 210mm Filter Element: Stainless Steel 304 Screen The efficiency of Filter Above 90%, Source of Power: Gravity. Installation:
Read More
Specifications
In The Box
Sales Package
1 Brackets, One Anti rust wall clamp set, Straps and Anchor bolts, Clean and Drain outlet connecting bushes, Filter connecting Hose clips and clamps, Manual brush, User Manual
Suitable up to area: 110 SQMTRS Max: Intensity of Rainfall: 75 mm/hr Working Principle : Cohesive Force & Centrifugal force Operating Pressure: Less than 2 feet of head (0.060kg/cm2) Capacity: 105 LPM Filter Element: SS-304 Screen Mesh Size: 250 Microns Inlet: 90 MM Clean Water Outlet: 63 MM Drain Outlet: 90 MM Housing: High Density Polyethylene Efficiency of Filter: Above 90% Source of Power: Gravity
Warranty
Warranty Summary
Applicable for all types
Service Type
Applicable for all types
Covered in Warranty
Applicable for all types
Not Covered in Warranty
nil
Domestic Warranty
1 Year
