Raspberry Pi Bluetooth Module HC-05 Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Warranty

If you have received a damaged or defective product or if it is not as described, you can raise a replacement request on the Website/App/Mobile site within 10 days of receiving the product. Successful pick-up of the product is subject to the following conditions being met: Correct and complete product (with the original brand/product Id/undetached MRP tag/product's original packaging/freebies and accessories). The product should be in unused, undamaged and original condition without any scratches or dents.

Highlights

Power Source: DC
RoHS Compliant
Material: Epoxy
Weight: 25

Description

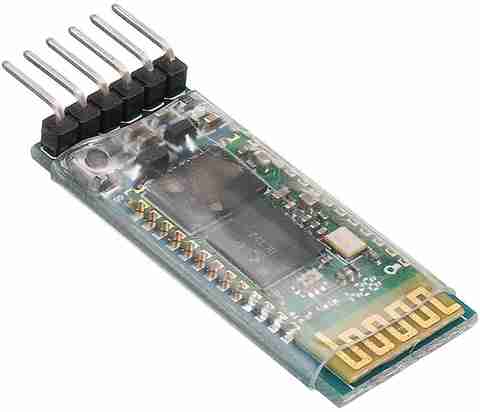

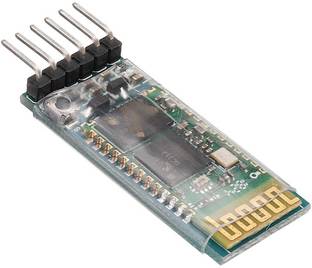

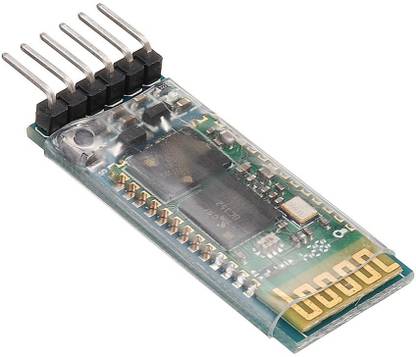

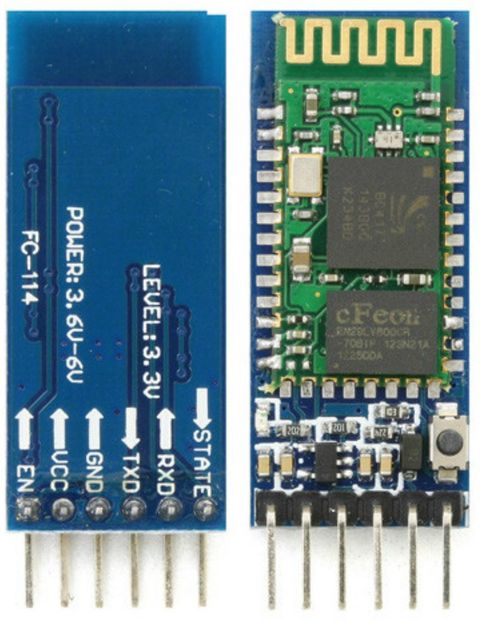

HC-05 is a Bluetooth module which is designed for wireless comunication. This module can be used in a master or slave configuration. It has 6 pins, 1. Key/EN: It is used to bring Bluetooth module in AT commands mode. If Key/EN pin is set to high, then this module will work in command mode. Otherwise by default it is in data mode. The default baud rate of HC-05 in command mode is 38400bps and 9600 in data mode. HC-05 module has two modes, 1. Data mode: Exchange of data between devices. 2. Command mode: It uses AT commands which are used to change setting of HC-05. To send these commands to module serial (USART) port is used. 2. VCC: Connect 5 V or 3.3 V to this Pin. 3. GND: Ground Pin of module. 4. TXD: Transmit Serial data (wirelessly received data by Bluetooth module transmitted out serially on TXD pin) 5. RXD: Receive data serially (received data will be transmitted wirelessly by Bluetooth module). 6. State: It tells whether module is connected or not.

Specifications

In The Box

Bluetooth Module

General

Brand	Raspberry Pi
Model Number	Bluetooth Module HC-05
Skillset	General Knowledge
Type	Electronic Components
Minimum Age	10
ROHS Complaint	Yes
Material	Epoxy
Age Group	10-12 Years
Suitable For Gifting	NA

Dimensions

Width	2 cm
Height	2 cm
Other Dimensions	NA
Weight	25

Power Features

Battery Type	No Batteries Required
No Of Batteries	No Batteries Required
Battery Size	No Batteries Required
Power Source	DC
Power Consumption	3.3 V
Other Power Features	It is used for many applications like wireless headset, game controllers, wireless mouse, wireless keyboard and many more consumer applications., It has range up to <100m which depends upon transmitter and receiver, atmosphere, geographic & urban conditions., It is IEEE 802.15.1 standardized protocol, through which one can build wireless Personal Area Network (PAN). It uses frequency-hopping spread spectrum (FHSS) radio technology to send data over air., It uses serial communication to communicate with devices. It communicates with microcontroller using serial port (USART).

Warranty

Domestic Warranty	0 Months
International Warranty	0 Months
Warranty Summary	If you have received a damaged or defective product or if it is not as described, you can raise a replacement request on the Website/App/Mobile site within 10 days of receiving the product. Successful pick-up of the product is subject to the following conditions being met: Correct and complete product (with the original brand/product Id/undetached MRP tag/product's original packaging/freebies and accessories). The product should be in unused, undamaged and original condition without any scratches or dents.
Service Type	If you have received a damaged or defective product or if it is not as described, you can raise a replacement request on the Website/App/Mobile site within 10 days of receiving the product. Successful pick-up of the product is subject to the following conditions being met: Correct and complete product (with the original brand/product Id/undetached MRP tag/product's original packaging/freebies and accessories). The product should be in unused, undamaged and original condition without any scratches or dents.
Covered in Warranty	Against Manufacturing Defect Only
Not Covered in Warranty	Human Error, physical damage

Additional Features

HC-05 has red LED which indicates connection status, whether the Bluetooth is connected or not. Before connecting to HC-05 module this red LED blinks continuously in a periodic manner. When it gets connected to any other Bluetooth device, its blinking slows down to two seconds.

Ratings & Reviews

3.9

★

36 Ratings &

4 Reviews

5★
4★
3★
2★
1★

Best in the market!

Good product, all good, totally working condition

Yashasvi Jangra

Certified Buyer, Bhiwani

Feb, 2020

Permalink

Report Abuse

Terrific purchase

Excellent

Flipkart Customer

Certified Buyer, Purnia District

Jan, 2021

Permalink

Report Abuse

Best in the market!

100% working. Did the work for what I had purchased.

Sourav Yadav

Certified Buyer, Moradabad District

Mar, 2020

Permalink

Report Abuse

Absolute rubbish!

not working disappointed. it disconnect a lot

Yahiya Shaikh

Certified Buyer, Ausa

Jul, 2021

Permalink

Report Abuse

All 4 reviews

Questions and Answers

Q:Does it support for arduino

A:Yes

PINAKA TECHNOLOGIES SG PVT LTD

Flipkart Seller

Report Abuse

Q:Is it compatible with Arduino

A:Yes

PINAKA TECHNOLOGIES SG PVT LTD

Flipkart Seller

Report Abuse
