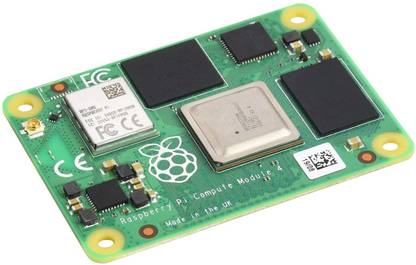

Raspberry Pi Compute Module 4 CM4101016 ARM Cortex-A72 1GB RAM 16GB EMMC WiFi & Bluetooth AM3+Socket Micro-ATX ARMv7 Chipset DDR4 Motherboard for Desktop

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces. Available in 32 variants, with a range of RAM and eMMC Flash options, and with or without wireless connectivity. Specification:- Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz; H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode); OpenGL ES 3.1, Vulkan 1.0; Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on variant); Options for 0GB ("Lite"), 8GB, 16GB or 32GB eMMC Flash memory (depending on variant); Option for fully certified radio module: 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless; Bluetooth 5.0, BLE; On-board electronic switch to select either external or PCB trace antenna. Size: 55mm?x?40mm. Applications:- Embedded Design & Development, Electronics Design, Industrial, IIoT (Industrial Internet of Things), IoT (Internet of Things).
