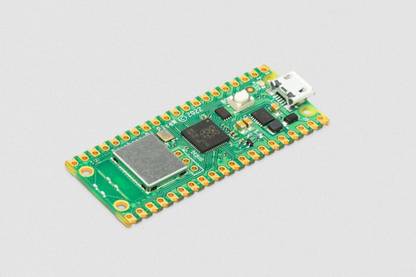

Raspberry Pi Pico W (Wireless) AM4Socket Nano-ITX ARMv7 Chipset DDR4 Motherboard for Desktop, Mobile, Tablet, Workstation

Raspberry Pi Pico W has been designed to be a low cost yet flexible development platform for RP2040, with a 2.4GHz wireless interface. NOTE:- Raspberry Pi Pico W I/O voltage is fixed at 3.3V. Key Features: • RP2040 microcontroller with 2MB of flash memory. • On-board single-band 2.4GHz wireless interfaces (802.11n). • Micro USB B port for power and data (and for reprogramming the flash). • 40 pin 21mmx51mm 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations. - Exposes 26 multi-function 3.3V general purpose I/O (GPIO). - 23 GPIO are digital-only, with three also being ADC capable. - Can be surface-mounted as a module. • 3-pin Arm serial wire debug (SWD) port. • Simple yet highly flexible power supply architecture. - Various options for easily powering the unit from micro USB, external supplies or batteries. • High quality, low cost, high availability. • Comprehensive SDK, software examples and documentation. • Dual-core cortex M0+ at up to 133MHz. - On-chip PLL allows variable core frequency. • 264kB multi-bank high performance SRAM. • External Quad-SPI flash with eXecute In Place (XIP) and 16kB on-chip cache. • High performance full-crossbar bus fabric. • On-board USB1.1 (device or host). • 30 multi-function general purpose I/O (four can be used for ADC). - 1.8-3.3V I/O voltage. • 12-bit 500ksps analogue to digital converter (ADC). • Various digital peripherals. - 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels. - 1 × timer with 4 alarms, 1 × real time clock. • 2 × programmable I/O (PIO) blocks, 8 state machines in total. - Flexible, user-programmable high-speed I/O. - Can emulate interfaces such as SD card and VGA. Package Includes:- 1x RPi Pico W
