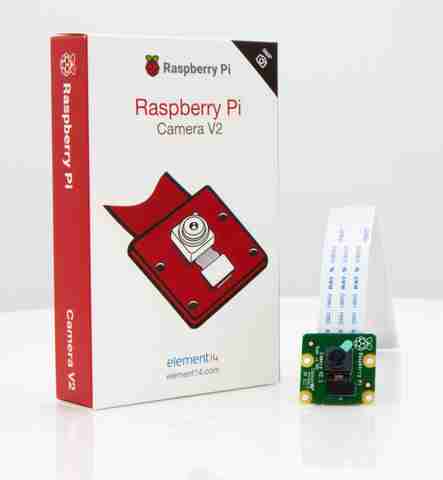

    Raspberry Pi RaspberriPi Official Camera Module V2 Electronic Components Electronic Hobby Kit

    Raspberry Pi RaspberriPi Official Camera Module V2 Electronic Components Electronic Hobby Kit

    Price: Not Available
    Currently Unavailable
    Warranty
    If you have received a damaged or defective product or if it is not as described, you can raise a replacement request on the Website/App/Mobile site within 10 days of receiving the product. Successful pick-up of the product is subject to the following conditions being met: • Correct and complete product (with the original brand/product Id/undetached MRP tag/product's original packaging/freebies and accessories). • The product should be in unused, undamaged and original condition without any scratches or dents.
    Highlights
    • Power Source: DC
    • RoHS Compliant
    • Material: Epoxy
    • Weight: 25
    Description

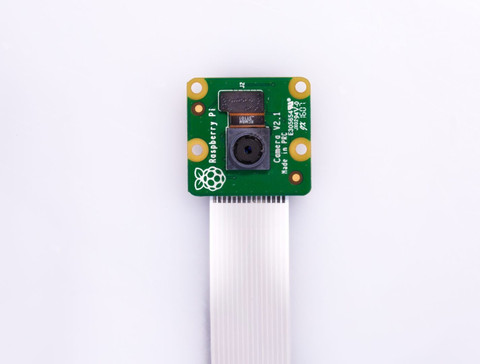

    The Raspberry Pi Camera Module v2 is a high quality 8 megapixel Sony IMX219 image sensor custom designed add-on board for Raspberry Pi, featuring a fixed focus lens. It's capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video. It attaches to Pi by way of one of the small sockets on the board upper surface and uses the dedicated CSI interface, designed especially for interfacing to cameras. The board itself is tiny, at around 25mm x 23mm x 9mm. It also weighs just over 3g, making it perfect for mobile or other applications where size and weight are important. It connects to Raspberry Pi by way of a short ribbon cable. A 15 cm ribbon cable (included) attached to the module slots straight into your Pi Camera Serial Interface port (CSI). Once connected, you can access the camera board via the Multi-Media Abstraction Layer (MMAL) or the Video for Linux (V4L) APIs. Alternatively there are libraries such as Picamera Python, and many others that you can find online.
    Read More
    Specifications
    In The Box
    • Camera Board, documentation
    General
    brand
    • Raspberry Pi
    Model Number
    • RaspberriPi Official Camera Module V2
    Type
    • Electronic Components
    Minimum Age
    • 10
    ROHS Complaint
    • Yes
    Material
    • Epoxy
    Additional Features
    Other Features
    • Optical size of 1/4", Works with any version of the Raspberry Pi or compute module
    Dimensions
    Width
    • 12 cm
    Height
    • 12 cm
    Other Dimensions
    • Size 25mm x 23mm x 9mm
    Weight
    • 25
    Power Features
    Battery Type
    • No Batteries Required
    No Of Batteries
    • No Batteries Required
    Battery Size
    • No Batteries Required
    Power Source
    • DC
    Other Power Features
    • 8 megapixel camera capable of taking photographs of 3280x2464 pixels, All software is supported within the latest version of Raspbian Operating System, Capture video at 1080p30, 720p60 and 640x480p90 resolutions, Applications: CCTV security camera, motion detection, time lapse photography, Size 25mm x 23mm x 9mm, 1.4m X 1.4m pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise), Connects to the Raspberry Pi board via a short ribbon cable (supplied)
    Warranty
    Warranty Summary
    • If you have received a damaged or defective product or if it is not as described, you can raise a replacement request on the Website/App/Mobile site within 10 days of receiving the product. Successful pick-up of the product is subject to the following conditions being met: • Correct and complete product (with the original brand/product Id/undetached MRP tag/product's original packaging/freebies and accessories). • The product should be in unused, undamaged and original condition without any scratches or dents.
    Service Type
    • If you have received a damaged or defective product or if it is not as described, you can raise a replacement request on the Website/App/Mobile site within 10 days of receiving the product. Successful pick-up of the product is subject to the following conditions being met: • Correct and complete product (with the original brand/product Id/undetached MRP tag/product's original packaging/freebies and accessories). • The product should be in unused, undamaged and original condition without any scratches or dents.
    Covered in Warranty
    • Manufacturing Defect Only
    Not Covered in Warranty
    • Physical damage and misuse
