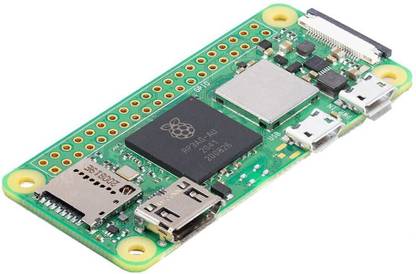

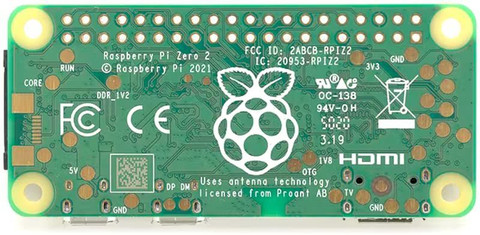

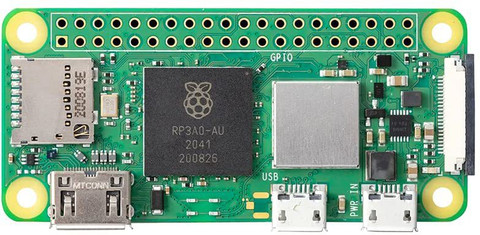

Raspberry Pi Zero 2 W 512MB RAM with Inbuilt Wi-Fi & Bluetooth AM1Socket Nano-ITX ARMv7 Chipset DDR2 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

One Year Manufacturer.

Highlights

Suitable For Desktop
ARMv7
Data Rate DDR2
Maximum RAM Capacity 0.512 GB
Form Factor: Nano-ITX

Description

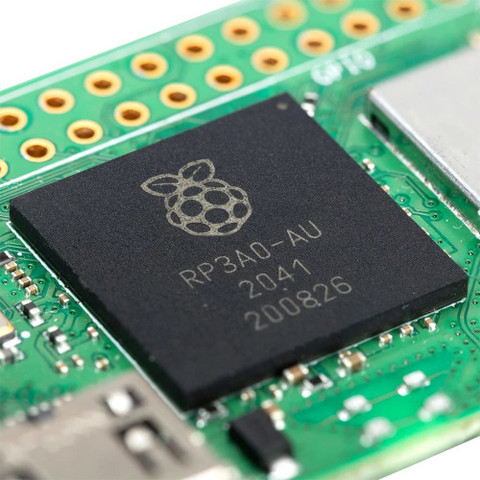

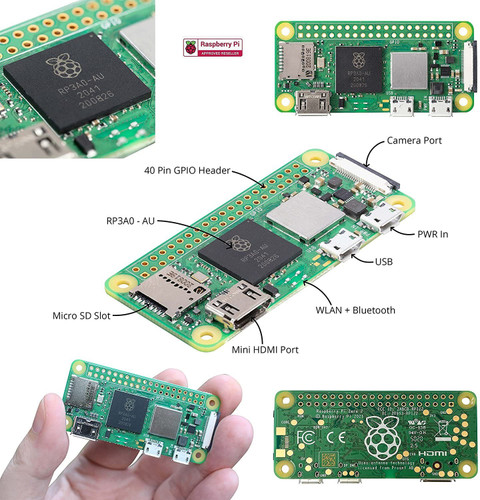

Key Features: Form factor: 65mm × 30mm; Processor: Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz); Memory: 512MB LPDDR2;///// Connectivity: 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE, onboard antenna; 1× USB 2.0 interface with OTG; HAT-compatible 40-pin I/O header footprint; microSD card slot; Mini HDMI port; CSI-2 camera connector.///// Video: HDMI interface; Composite video.///// Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics.///// Input power: 5V DC 2.5A; Operating temperature: -20°C to +70°C;///// Product Dimensions: 65.0mmx30.0mmx5.3mm / 2.6"x1.2"x0.2". Product Weight: 10.0g/0.4oz.

Specifications

Graphics

Integrated Graphics card

Back Panel Ports

HDMI Ports

In The Box

Sales Package

1x Raspberry Pi Zero 2 W Board.

General Features

Processor Clock Speed	1 GHz
Advanced Features	Zero 2 is up to five times as fast as the original Raspberry Pi Zero.

Warranty

Domestic Warranty	1 Year
Warranty Summary	One Year Manufacturer.
Covered in Warranty	Manufacturing Defects.
Not Covered in Warranty	Burnt, Physical Damage
Warranty Service Type	Replacement.

Memory

Memory Configuration

0.512 GB DDR2 DIMM

General

Brand	Raspberry Pi
Model ID	Zero 2 W 512MB RAM with Inbuilt Wi-Fi & Bluetooth
Designed For	Desktop
Capacity	32 GB
Key Features	Raspberry Pi Zero 2 W is RP3A0, A-Tiny Computer for Smart Home Applications and IoT projects., With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM., Zero 2 is up to five times as fast as the original Raspberry Pi Zero., Wireless LAN is built in to a shielded enclosure with improved RF compliance, giving you more flexibility when designing with Raspberry Pi Zero 2 W., All in the same tiny 65mm × 30mm form factor as predecessor (RPi Zero & Zero W).

Connectivity

Wireless and Bluetooth

2.4GHz IEEE 802.11b/g/n wireless LAN and BLE 4.2

Dimensions

Dimensions	30 x 5.3 x 65 mm
Weight	10 g

Essentials

Form Factor	Nano-ITX
Socket Type	AM1
Compatible Processors	Arm Cortex-A53
Chipset	ARMv7
Chipset Manufacturer	Broadcom
