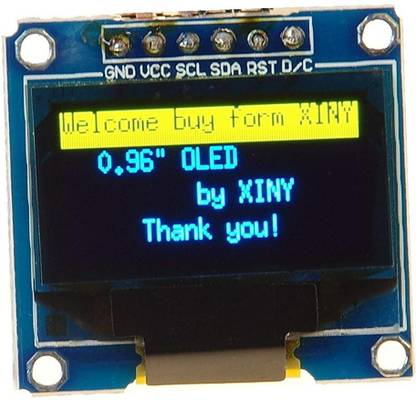

REES52 1188 6-pin SPI 0.96 inch Double color OLED Display Module, Yellow/Blue Display Lights Electronic Hobby Kit

High resolution: 128x64 (and 12864lcd same resolution, but the pixels per unit area of the oled screen more). Ultra-wide viewing angle: Greater than 160 ° (maximum viewing angle display a screen).Low power consumption: Normal display 0.06w (far below the tft display). Wide power supply range: Dc 3v-5v (without any changes, directly compatible with common 3.3v and 5v power supply system). Industrial grade: Operating temperature range -30 ? - 70 ?.Support for multiple operating mode: 4-wire spi. Compatible with 3.3v and 5v control chip i / o level (without any settings, directly compatible).Oled screen inside the driver ic: Ssd1306. Support wide voltage: 3v-5v dc. Driver ic: Ssd1306. Communication: Spi, only two i / o ports. Size: 0.96 inch. Ultra-small size :( Length) 27.8mm (width) 27.3mm (thick) 4.3mm. Weight:4.0g/0.14oz. Pin description: Gnd: Power ground. Vcc: 3.3v or 5v power supply. Scl: Clk clock. Sda: Mosi data. Rst: Reset. Dc: Data / command.
