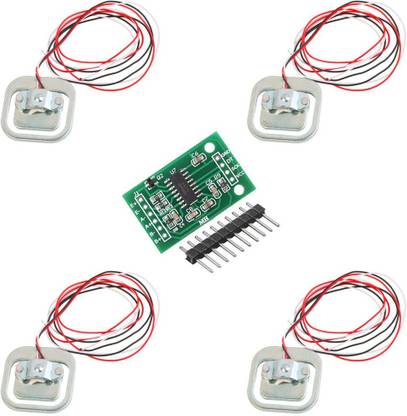

REES52 4Pcs 50kg Load Cell Body Scale Weight Weighting Sensor Half-Bridge/Amplifier with 1pcs HX711 A/D Module for Arduino Electronic Components Electronic Hobby Kit

Human Scale Load Cell Weight Weighting Sensor 50KG Half-bridge Strain Gauge Bathroom Scale The sensor is a group of half-bridge strain gauge, there are 3 ways to use it : 1. Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements. 2.Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg 3.Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg Amplifier HX711 AD Module Strain Gauge Bathroom Scale Features: Two selectable differential input channels On-chip active low noise PGA with selectable gain of 3264 and 128 On-chip power supply regulator for load-cell and ADC analog power supply On-chip oscillator requiring no external component with optional external crystal On-chip power-on-reset Simple digital control and serial interface: pin-driven controlsno programming needed Selectable 10SPS or 80SPS output data rate Simultaneous 50 and 60Hz supply rejection Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA Operation supply voltage range: 2.6 ~ 5.5V Operating Temperature Range:-20 degree ~ +85 degree https://github.com/aguegu/ardulibs/tree/master/hx711 https://cdn.sparkfun.com/datasheets/Sensors/ForceFlex/hx711_english.pdf https://www.youtube.com/watch?v=nGUpzwEa4vg Package Includes: 4 X Human Scale Load Cell 50kg 1 X HX711 AD Module
