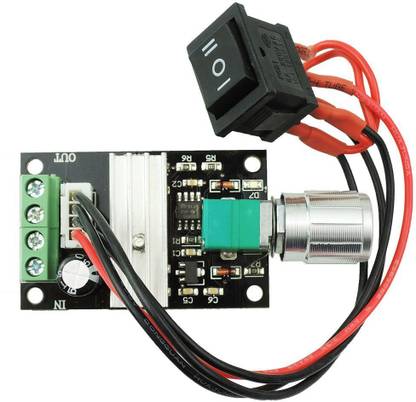

REES52 6V 12V 24V 28V 3A 80W DC Motor Speed Controller (PWM) Speed Adjustable Reversible Switch 1203BB dc motor driver reversing 3 A Rotary Dimmer (Black)

Price: Not Available

Currently Unavailable

Description

Features: 1203bb dc motor speed regulator controls the speed of a dc motor by adjusting pulse-width-modulated (pwm). The input power range is dc6-28v . Control the forward or reverse direction and the stop of dc motor by switch. Potentiometer with switch function. The switch cable length 15cm. Operating instruction: Before you attempting to wire the controller, make sure power is off. Warning: Do not reverse positive and negative power loads. This will damage the controller. 1. Connect wires refer to the “wiring diagram” (no.5 picture). 2. Turn on the power, and adjust the potentiometer. 3. The led indicates the power up and the speed of motor. Package including: 1 x dc motor speed controller.

Specifications

In The Box

Sales Package

1 x DC Motor Speed Controller

General

Brand	REES52
Model Number	B079WS5S3R
Model Name	6V 12V 24V 28V 3A 80W DC Motor Speed Controller (PWM) Speed Adjustable Reversible Switch 1203BB dc motor driver reversing
Shade	Black
Current Rating	3 A
Power Requirement	80 W
Color	Black
Type	Rotary
Number of Poles	1
Number of Ways	1
Used For	Control the forward or reverse direction and the stop of dc motor by switch.
Load Type	Electro Magnetic

Additional Features

Other Features	The maximum output power: 80W. The maximum continuous output current :3A
Key Features	Duty Cycle adjustable: 5%-100%, potentiometer with switch function
