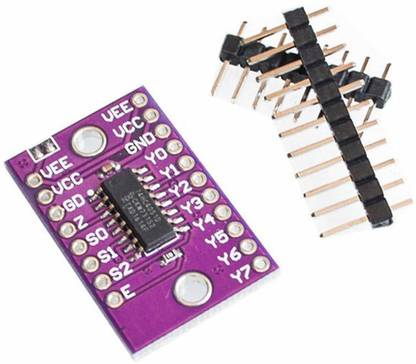

REES52 74HC4051 8-Channel-Mux Analog Multiplexer Selector Module Micro Controller Board Electronic Hobby Kit

EES52 3Pcs 74HC4051 8-Channel-Mux Analog Multiplexer Selector Module Features: 74HC4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Features: Wide analog input voltage range from -5 V to +5 V Complies with JEDEC standard no. 7A Low ON resistance: 80 ohm (typical) at VCC - VEE = 4.5 V 70 ohm(typical) at VCC - VEE = 6.0 V 60 ohm(typical) at VCC - VEE = 9.0 V Logic level translation: to enable 5 V logic to communicate with±5 V analog signals Typical ‘break before make’ built-in ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V CDM JESD22-C101E exceeds 1000 V Specified from -40? to +85? and -40? to +125?
