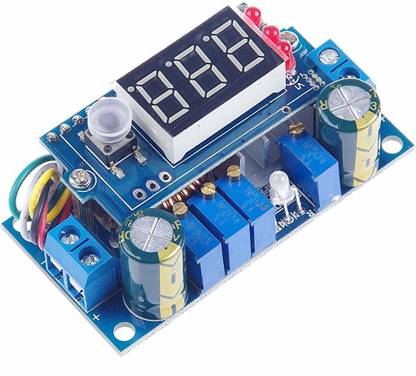

REES52 DC Voltage Regulator Buck Converter Constant Current Voltage Solar Controller Timer Counter and Clock Electronic Hobby Kit

Module Name: 5A buck constant voltage constant current MPPT Module Properties: Non-isolated buck module (BUCK) Input voltage: 6-36V Output voltage: 1.25-32V continuously adjustable (the default output 5V) MPPT voltage setting range: 6-36V Output current range: 0.05-5A (The default output current is 3A) Turn lights output range: 0.01-5A (default turn lamp current 0.3A) the current range will be a little difference because the parts parameter error. Operating temperature: -40 to + 85 degree Operating frequency: 180KHz Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related) Short circuit protection: Yes Over temperature protection: (automatically shut off the output after overtemperature) Input reverse polarity protection: None, (if necessary, please add the string into the diode) Output anti-anti-irrigation protection: no, the output must be connected to the battery plus blocking diode, otherwise it will burn the module! Charging indicator: charging red, bright green when fully charged. Turn lamp is the output current detection. Installation: 4 pcs 3mm screws Connection: IN is the input, OUT is output Module dimensions:60 x 31 x 22 mm(without meter) Note: Detection module, please do not direct connect the output of negative electrode and the input of negative electrode Package Included: 1x Constant Voltage Constant Current Buck Converter
