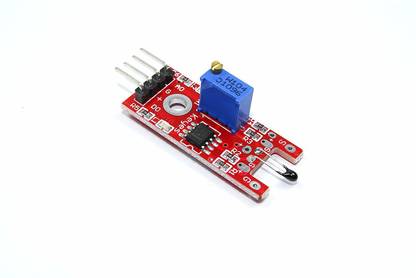

REES52 Digital Temperature Sensor Module F Arduino Raspberry Pi | Thermistor Temperature Sensor and Controller Electronic Hobby Kit

Simple circuit of digital temperature module and integrated LED connecting to digital 13 interface to make temperature indicator light. Use number 13 interface to connect the integrated LED, connect digital temperature sensor to number 3 interface. When the digital temperature sensor senses key signal, the LED is on, otherwise, it's out. Sample code: Int Led = 13;/ / define LED interface Int buttonpin = 3;/ / define the digital temperature sensor interface Int val./ / define digital variable val Void setup () PinMode (Led, the OUTPUT);/ / define the LED for the output interface PinMode (buttonpin, INPUT);/ / define the digital temperature sensor for the output interface Void loop Val = digitalRead (buttonpin);/ / to assign the value of digital interface 3 read val If (val = = HIGH) / / when digital temperature sensor detection signal, LED flashing DigitalWrite (Led, HIGH); The else DigitalWrite (Led, LOW);
