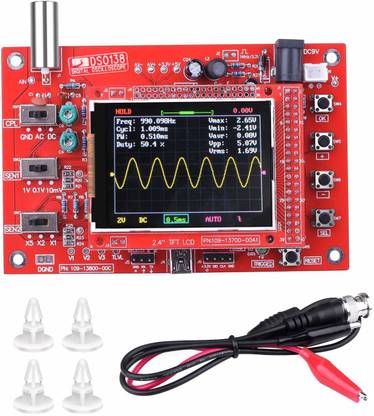

REES52 DSO138 Oscilloscope, DSO 138 DIY Mini Oscilloscope, 2.4" TFT 1MSPS Digital Oscilloscope Kit Handheld Pocket Sized 13803K (Welded Version) Digital Oscilloscope

Price: Not Available

Currently Unavailable

Description

Features: --Fully assembled, not DIY Kit! --It contains only the basically oscilloscope functions with no fancy features. Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purposes, uses mostly through-hole parts: the heart is a Cortex-M3 ARM processor (STM32F103C8) from ST. --It uses 2. 4-inch TFT LCD (320 X 240 dot-matrix, 262K colors) as its display element and displays nice and clear waveforms. --Detailed assembly instructions are provided in combination with troubleshooting guide and schematic. --Source codes are also available to allow user to add their own features.

Specifications

In The Box

Sales Package

1 x DSO138 Oscilloscope, DSO 138 DIY Mini Oscilloscope, 2.4" TFT 1MSPS Digital Oscilloscope Kit Handheld Pocket Sized 13803K (Welded Version)

General

Brand	REES52
Model Number	DSO138 Oscilloscope, DSO 138 DIY Mini Oscilloscope, 2.4" TFT 1MSPS Digital Oscilloscope Kit Handheld Pocket Sized 13803K (Welded Version)
Type	Digital Oscilloscope
Power Requirement	12v
Bandwidth	200 Mhz

Additional Features

Key Features

DSO 138 oscilloscope circuit boards components are pre-soldered, no need soldered by yourself., DSO 138 Mini Oscilloscope uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.Can freeze at any time waveform display (HOLD function)., DSO 138 Oscilloscope With automatic, regular and one-shot modes, easy to capture the moment waveform.Available rising or falling edge trigger.Observable previous trigger waveform (negative delay)., This oscilloscope With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.Waveform storage function: will not lose the waveform after power off., Adjustable vertical displacement and with instructions,which increase the likelihood of adding different features or developing new applications on the hardware for users.

Dimensions

Width	6 cm
Height	4 cm
Depth	3 cm
Weight	0.2 kg

Ratings & Reviews

3.5

★

35 Ratings &

4 Reviews

5★
4★
3★
2★
1★

Decent product

This not original.worked for a month and then the waveform does not appear on the display

Sugu Vayal

Certified Buyer, Kannur

Mar, 2022

Permalink

Report Abuse

Wonderful

Good one

Flipkart Customer

Certified Buyer, Munnuru

Jul, 2021

Permalink

Report Abuse

Unsatisfactory

Compnent heating

Mahammad Sabith

Certified Buyer, Uppinangdi

May, 2022

Permalink

Report Abuse

Utterly Disappointed

It's not working

Vasu Garre

Certified Buyer, Vijayawada

Feb, 2022

Permalink

Report Abuse

All 4 reviews
