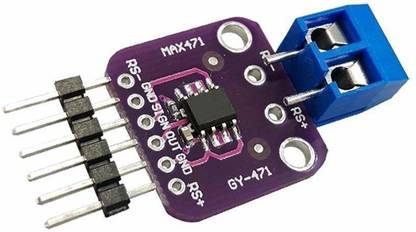

REES52 GY-471 3A Range Current Sensor Module Professional MAX471 Module For Arduino Micro Controller Board Electronic Hobby Kit

Size: 19.5 * 20.3mm This module can be used to test the current and voltage. The principle of voltage test based on principle of resistive voltage divider design, can make the red terminal connector input voltage to 5 times smaller. Analog input voltages up to 5 v, the voltage detection module input voltage not greater than 5Vx5 = 25V (if using 3.3V systems, input voltage not greater than 3.3Vx5 = 16.5V). AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V / 1023), so the minimum voltage of input voltage detection module is 0.00489 Vx5 = 0.02445V. The MAX471 chip on the board used to test the consume current of the load. Paramenter: Test Voltage range: DC3 - 25V (Ard uino work on 5V) or DC3 - 16.5V (work on 3.3V) Test Current range: DC 0 - 3A Package Included: 1 x MAX471 Voltage Current Sensor
