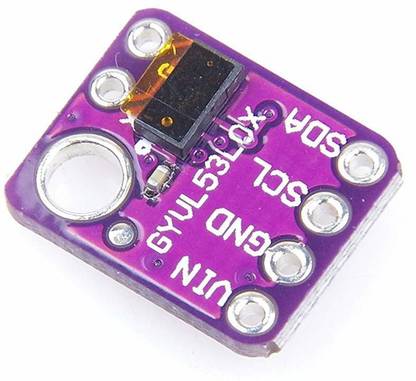

REES52 GY-530 VL53LOX Laser Rangefinder Time-of-Flight Ranging Sensor Module Educational Electronic Hobby Kit

Fully integrated miniature module; – 940nm Laser VCSEL ; – VCSEL driver – Ranging sensor with advanced embedded micro controller – 4.4 x 2.4 x 1.0mm Fast, accurate distance ranging – Measures absolute range up to 2m – Reported range is independent of the target reflectance – Operates in high infrared ambient light levels – Advanced embedded optical cross-talk compensation to simplify cover glass selection Eye safe – Class 1 laser device compliant with latest standard IEC 60825-1:2014 - 3rd edition Easy integration – Single reflowable component – No additional optics – Single power supply – I2C interface for device control and data transfer – Xshutdown (Reset) and interrupt GPIO – Programmable I2C address Power supply: 2.8-5V Applications: User detection for Personal Computers/ Laptops/Tablets and IoT (Energy saving). Robotics (obstacle detection). White goods (hand detection in automatic faucets, soap dispensers etc...). 1D gesture recognition. Laser assisted Auto-Focus. Enhances and speeds-up camera AF system performance, especially in difficult scenes (low light levels, low contrast) or fast moving video mode. Package Included: 1*GY-530 VL53LOX Laser Rangefinder Sensor Module
