REES52 Motor Controller, DC 10-50V 60A High Power Motor Speed Controller PWM HHO RC Driver Controller Module 12V 24V 48V 3000W Extension Cord with Switch 60 A Rotary Dimmer (Red)

Price: Not Available

Currently Unavailable

Description

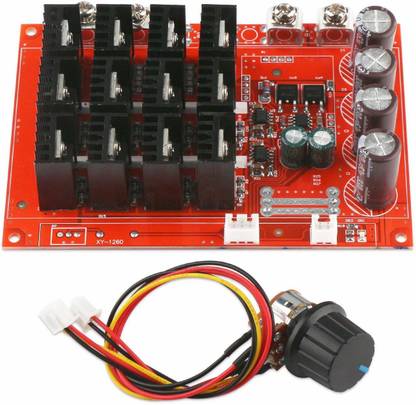

Parameter: DROK DC motor speed controller operating voltage range is DC 10-50V, max rated current is 60A, control power range is 0.01-3000W, working temperature range of -20℃-40℃. High-end Configuration: Our motor driver control board uses PWM modulation system to adjust light & speed. In addition, it is designed with radiators to doing heat dissipation created by MOS tube. Convenient Speed Control: With wires to connect potentiometer and regulation switch to control the speed, it is convenient to use.

Specifications

In The Box

Sales Package

1 x Motor Speed Control Board

General

Brand	REES52
Model Number	B07PP1YRP5
Model Name	Motor Controller, DC 10-50V 60A High Power Motor Speed Controller PWM HHO RC Driver Controller Module 12V 24V 48V 3000W Extension Cord with Switch
Shade	Red
Current Rating	60 A
Power Requirement	3000 W
Color	Red
Type	Rotary
Number of Poles	1
Number of Ways	1
Used For	Universal DC brush motor speed regulation; car motor speed regulation; production line conveyor belt speed regulation; electronic fan speed regulation etc.
Load Type	Electro Magnetic

Additional Features

Key Features

Low Quiescent Current: our speed regulation module is designed with low quiescent current 0.04A(When the working voltage is DC10V-50V, the quiescent current cannot exceed 40mA). Wide Application: our motor driver control board can be applied to universal DC brush motor speed regulation; car motor speed regulation; production line conveyor belt speed regulation; electronic fan speed regulation etc.
