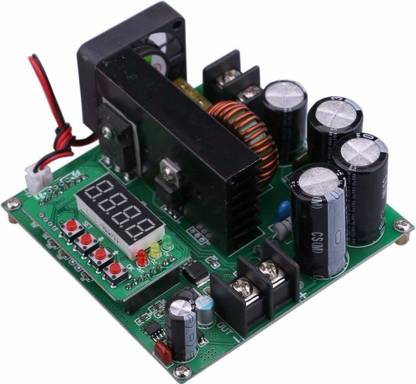

REES52 Numerical Control Voltage Regulator DC Boost Converter Constant Module Temperature Sensor and Controller Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Plastic
Weight: 0.75

Description

Technical parameters : Input voltage: 8-60V Input current: 0-15A Output voltage: 10-120V Output current: 0-15A Output power: 900W(MAX) Conversion efficiency: 85% Working frequency: 150KHz Short circuit protection: 20A fuse Operating temperature: -40?-+85? Control method: Numerical control+Digital tube monitor Voltage adjustment: <100V/0.01V Display resolution: >100V/0.1V Minimum resolution of power display: 0.001W Current adjustment: <10A/0.001A Display resolution: >10AS/0.01A Minimum resolution of capacity: 0.001AH Output ripple: ?50mV Dimension: 110(L)*99(W)*46(H)mm

Specifications

In The Box

voltage regulator module(1PC)

General

brand	REES52
Model Number	Numerical Control Voltage Regulator DC Boost Converter Constant Module
Type	Temperature Sensor and Controller
Minimum Age	12
ROHS Complaint	No
Material	Plastic

Dimensions

Width	5 cm
Height	4 cm
Weight	0.75

Power Features

Battery Type	NA
No Of Batteries	0
Battery Size	NA
Power Source	DC
Other Power Features	NA
