REES52 Stepper Motor for Arduino 5 sets 28BYJ-48 ULN2003 5V Stepper Motor Control Electronic Hobby Kit

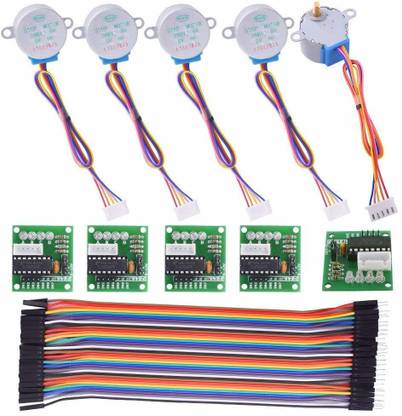

Features: - Drive Module Board Size(in): 1.37*1.18*0.6 ; Stepper Motor diameter: 1.06(in) ; Stepper Motor lines: 9.45(in) - A, B, C, D four-phase LED indicates the status of the stepper motor work. Stepper motor with a standard interface, directly plugged. - 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board?With convenient use, direct docking - Rated Voltage: DC5V 4-phase - Insulation Resistance: >10M? (500V) - Dielectric Strength: 600V AC / 1mA / 1s - Step angle: 5.625 x 1/64 - DC Resistance: 200?±7% (25C) - Reduction ratio: 1/64 - Insulation Grade: A - No-load Pull in Frequency: >600Hz - No-load Pull out Frequency: >1000Hz - Pull in Torque: >34.3mN.m(120Hz) - Temperature Rise: ?40K(120Hz) Component listing: Uln2003 Stepper Motor *5 Driver Board *5 40-pin male to female jumper wires*1
