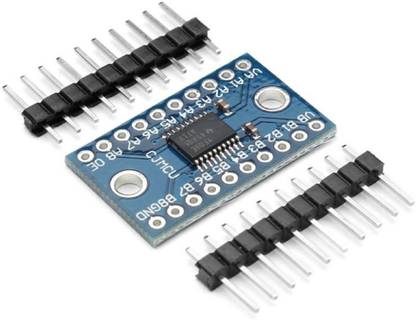

REES52 TXS0108 High Speed Full Duplex 8 Way 8 Channel Level Conversion Module Level Bi-directional Converter Module Micro Controller Board Electronic Hobby Kit
Price: Not Available
Currently Unavailable
Highlights
Power Source: DC
Material: Plastic
Weight: 0.25
Description
DESCRIPTION : If you’ve ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. This bi-directional logic level converter is a small device to convert the 1.8V 3.3V 5V logic level mutually enable you to successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 8 pins on the high side to 8 pins on the low side.The level converter provide serial inteface compatible with UART/IIC/SPI port is very easy to use. Feature : Provide two-way communication capability. VCCA side support voltage: 1.2V-3.6V. VCCB side support voltage: 1.65v-5.5v. Can provide 3.3-5V, 1.8-3.3v and other common level conversion capability. Main applications : 5V and 3.3V MCU module. 3.3V and 5V MCU module. Compatible and other communications support. MCU and SD card communication level conversion. SCM and iic, spi serial device level converter. OE active high enable IO recommended by a low voltage side of the IO port. Package included : 1 x TXS0108E High Speed Full Duplex 8 Channel Logic Level Bi-directional Converter Module
Read More
Specifications
In The Box
1 x TXS0108E High Speed Full Duplex 8 Channel Logic Level Bi-directional Converter Module
General
brand
REES52
Model Number
TXS0108 High Speed Full Duplex 8 Way 8 Channel Level Conversion Module Level Bi-directional Converter Module
Type
Micro Controller Board
Minimum Age
12
ROHS Complaint
No
Material
Plastic
Dimensions
Width
5 cm
Height
4 cm
Weight
0.25
Power Features
Battery Type
NA
No Of Batteries
0
Battery Size
NA
Power Source
DC
Other Power Features
NA
