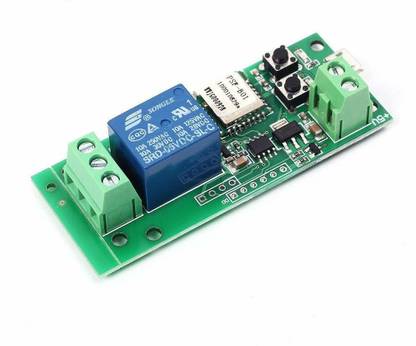

REES52 WiFi Wireless Smart Switch Relay Module for Smart Home 5V 5V/12V?Ba applied to access control, turn on PC, garage door (5v) Micro Controller Board Electronic Hobby Kit

Description : The wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink to remote control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select : Turn on 1s and then auto-off. Turn off 1s and then auto-on. The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions : Remote turn on/off Timing Schedules Device Sharing Group Management Specification : Dimensions:70.5mm*27.4mm*23mm. Operating current: 5V DC(ordinary phone charger can be used,not included) LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively. Board consumption: <1W. Standby current: 80mA. Max input current: 10A. Max switching voltage: <250V. Relay lifespan: more than one million times. Electrical insulation resistance 100M. Electric shock voltage: 1000V. Relay maximum pull time: 15ms. Relay maximum release time: 5ms. Operating temperature: -40 degrees to +70 degrees. Operating Humidity 40% ~ 80% RH. Rated switching voltage: <250V. Package included : 1 x Jog Inching Self-locking WiFi Wireless Smart Home Switch
