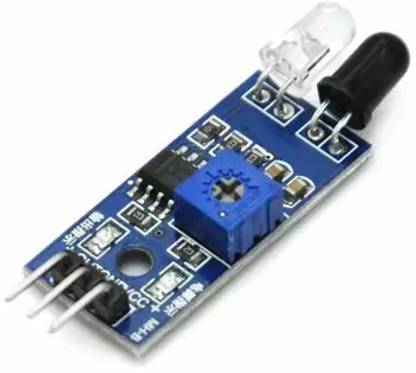

rich hood IR Infrared Sensor Module Reflective Photoelectric Light Intensity DIY Kit for Arduino UNO (Pack of 2pcs) Security Circuit and Motion Detector Electronic Hobby Kit Security Circuit and Motion Detector Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Warranty

Highlights

Power Source: AC
RoHS Compliant
Material: Copper
Weight: 0.2

Description

The sensor module light is adaptable to the environment, it has a pair of infrared transmitting and receiving tube, tube infrared emit a certain frequency, when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving tube, after the comparator circuit processing, green indicator will light up, at the same time signal output interface to output digital signal (a low level signal), can be through the potentiometer knob adjust the detection distance, effective distance range 2 ~ 30cm, working voltage is 3.3V to 5V. The sensor detection range can be through the potentiometer to adjust and have small interference, easy to assemble, easy to use, etc, can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on many occasions.

Specifications

In The Box

2 Photoelectric Light

General

Brand	rich hood
Model Number	IR Infrared Sensor Module Reflective Photoelectric Light Intensity DIY Kit for Arduino UNO (Pack of 2pcs) Security Circuit and Motion Detector Electronic Hobby Kit
Skillset	Problem Solving
Type	Security Circuit and Motion Detector
ROHS Complaint	Yes
Material	Copper
Age Group	14-16 Years
Lights	Yes
Sound	No
Suitable For Gifting	NA
Key Features	can be used for 3 to 5v dc power to power supply module. When power on, the red power indicator light lit;, each module is shipped already compare threshold voltage through the potentiometer to adjust good, not special circumstances, please do not arbitrarily adjust the potentiometer., 3 mm screw holes, easy fixed, installation;, OUT small board digital output interface (0 and 1)

Dimensions

Width	12 cm
Height	6 cm
Other Dimensions	The module can be 3-5V DC power supply. When the power is turned on, the red power indicator lights
Weight	0.2

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	AC
Power Consumption	NA
Other Power Features	sensors, active infrared reflection detection, therefore the reflectivity and shape of the target is the key of the detection range. White one black detection range, minimum maximum; Small area of the object distance, large distance., the comparator USES the LM393, working stability;

Warranty

Warranty Summary	NA
Service Type	NA
Covered in Warranty	NA
Not Covered in Warranty	NA

Additional Features

when the module detects obstacles in front of the signal, the green indicator on the circuit board light level and at the same time the OUT port output low level signal, the detection module from 2 ~ 30cm, 35° detection Angle, test distance can be adjusted through the potentiometer, adjustable potentiometer clockwise, the detection distance increases; Counter-clockwise tuning potentiometer, detection distance is reduced., sensors, active infrared reflection detection, therefore the reflectivity and shape of the target is the key of the detection range. White one black detection range, minimum maximum; Small area of the object distance, large distance.
