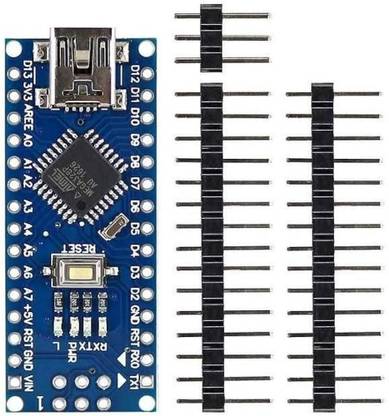

ROBO ROBO_Nano Arduino Board Micro Controller Board Electronic Hobby Kit
Price: Not Available
Currently Unavailable
Highlights
- Power Source: DC
- RoHS Compliant
- Material: Silicone
- Weight: 0.05
Description

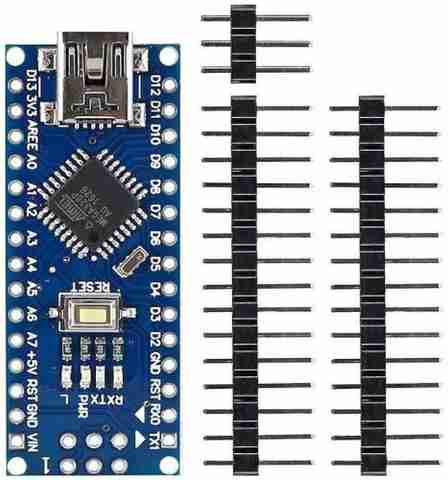

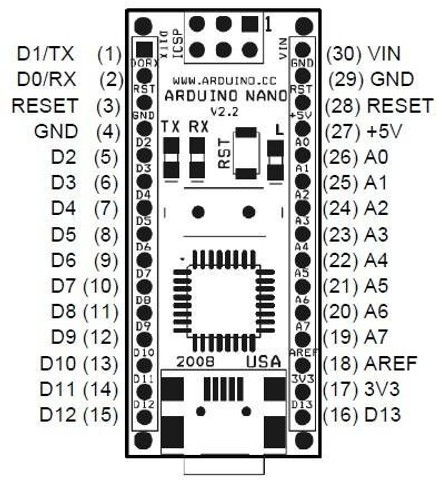

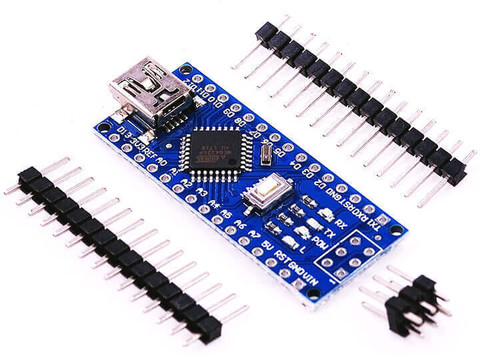

Kit Contains: Arduino Nano Board (unsoldered) and Male Berg Pins, Note: Need to install CH341SER driver Microcontroller Atmel ATmega328 Operating Voltage (logic level): 5V Input Voltage (recommended): 7V ~ 12V Input Voltage (limits): 6V ~ 20 V Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current per I/O Pin: 40mA Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader) SRAM: 2KB (ATmega328) EEPROM: 1KB (ATmega328) Clock Speed: 16MHz
Read More
Specifications
In The Box
|
General
| brand |
|
| Model Number |
|
| Type |
|
| ROHS Complaint |
|
| Material |
|
Dimensions
| Width |
|
| Height |
|
| Weight |
|
Power Features
| Battery Type |
|
| No Of Batteries |
|
| Battery Size |
|
| Power Source |
|
| Other Power Features |
|
Ratings & Reviews
3.5
★
23 Ratings &
0 Reviews
- 5★
- 4★
- 3★
- 2★
- 1★
- 8
- 5
- 3
- 4
- 3
Have you used this product? Be the first to review!
Questions and Answers
Q:Cable is available
A:No
Kamal swal
Flipkart Seller0
0
Report Abuse
Q:Can it work pwm
A:yes of course ,It has a total of 6 PWM pins that is D3, D5, D6, D9, D10, and D11.
Kamal swal
Flipkart Seller2
0
Report Abuse
Didn't get the right answer you were looking for
