Robocraze Arduino Due, AT91SAM3X8E Arm Cortex-M3 Board, 84Mhz, 512Kb
Get notified when this item comes back in stock.

Robocraze Arduino Due, AT91SAM3X8E Arm Cortex-M3 Board, 84Mhz, 512Kb (Multicolor)

Share

Robocraze Arduino Due, AT91SAM3X8E Arm Cortex-M3 Board, 84Mhz, 512Kb  (Multicolor)

4.4
12 Ratings & 2 Reviews
₹1,765
2,000
11% off
Sold Out
This item is currently out of stock
Highlights
  • Epoxy Material
  • No batteries Battery
  • Non Rechargeable
  • Width x Height: 6 inch x 2 inch
Description

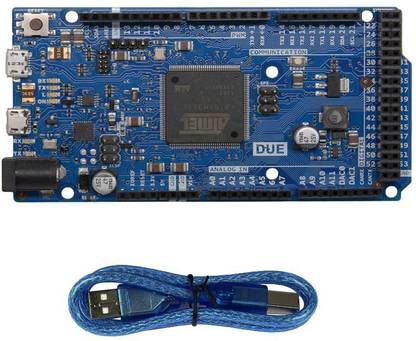

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU (datasheet). It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. Warning: Unlike other Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout. The Due follows the 1.0 pinout: TWI: SDA and SCL pins that are near to the AREF pin. The IOREF pin which allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V. An unconnected pin, reserved for future use. The Arduino Due has it's own, dedicated forum for discussing the board.
Read More
Specifications
General
Sales Package
  • 1 Arduino Due Arm Cortex-M3 board, 1 USB Cable
Skillset
  • General Knowledge, Analysis & Critical Thinking, Curiosity Building
Number Of Batteries
  • 0 Batteries
Minimum Age
  • 8
Material
  • Epoxy
Battery Operated
  • No
Battery Type
  • No batteries
Rechargeable
  • No
Dimensions
Width
  • 6 inch
Height
  • 2 inch
Depth
  • 0 inch
Weight
  • 100 g
Ratings & Reviews
4.4
12 Ratings &
2 Reviews
  • 5
     9
  • 4
     1
  • 3
     1
  • 2
     0
  • 1
     1
5

Simply awesome

Quality of the board is good
READ MORE

Ratnadeep More

Certified Buyer, Jalgaon

2 months ago

0
0
Report Abuse
1

Absolute rubbish!

No cable with product
READ MORE

Avinash Ahuja

Certified Buyer, Amritsar

6 months ago

0
0
Report Abuse
