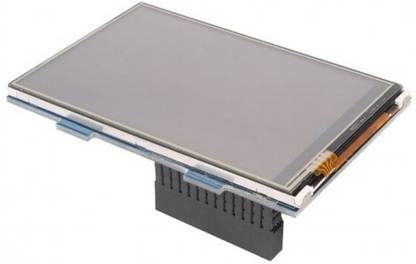

Robodo 3.2 inch Resistive Touch Screen Display Module TFT LCD Designed for Raspberry Pi Display Lights Electronic Hobby Kit

"Features Designed for Raspberry Pi, easy to use Supports any revision of Raspberry Pi (directly-pluggable) Driver provided (works with custom Raspbian directly) Supports Raspbian system, enables your system to: Play videos (supports multi formats, MP4 and so on) Take photos by touching (up to 17 camera modes) Support software keyboard (system interaction without keyboard/mouse) High quality immersion gold surface plating Key Parameters LCD Type TFT LCD Interface SPI Touch Screen Type Resistive Touch Screen Controller XPT2046 Colors 65536 Backlight LED Resolution 320*240 (Pixel) Aspect Ratio 4:3 Power Consumption TBD Backlight Current TBD Operating Temp. (?) TBD Interface PIN NO. SYMBOL DESCRIPTION 1, 17 3.3V Power positive (3.3V power input) 2, 4 5V Power positive (5V power input) 3, 5, 7, 8, 10, 22 NC NC 6, 9, 14, 20, 25 GND Ground 11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching 12 KEY1 Key 13 RST Reset 15 LCD_RS LCD instruction control, Instruction/Data Register selection 16 KEY2 Key 18 KEY3 Key 19 LCD_SI / TP_SI SPI data input of LCD/Touch Panel 21 TP_SO SPI data output of Touch Panel 23 LCD_SCK / TP_SCK SPI clock of LCD/Touch Panel 24 LCD_CS LCD chip selection, low active 26 TP_CS Touch Panel chip selection, low active "
