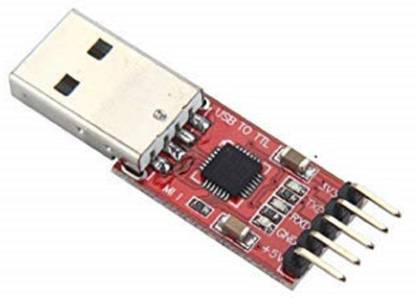

Robotbanao Micro SATA Cables USB to Serial TTL CP2102 UART Port Module Machine Upgrade STC Adapter Board Micro Controller Board Electronic Hobby Kit
Price: Not Available
Currently Unavailable
Warranty
Na
Highlights
Power Source: DC
RoHS Compliant
Material: Plastic
Weight: 150
Description
Features: Implements full v2.0 USB protocol Needs no external crystal Internal EEPROM for device ID and Product Description strings +3.3V 100ma output 5 volt tolerant inputs USB Specification 2.0 compliant; full-speed (12 Mbps) All handshaking and modem interface signals Use this device to connect your PC to a serial (TTL level) device. Uses CP2102 chipset and has a standard 0.1 2033; pitch terminal strip to connect directly to UART or I/O pins for easy access to your MCU USB specification 2.0 compliant with full-speed 12Mbps. Standard USB type A male and TTL 6pin connector. 6 pins for 3.3V, RST, TXD, RXD, GND andamp; 5V. Baud rates: 300 bps to 1.5 Mbps. Byte receive buffer; 640 byte transmit buffer. Hardware or X-On/X-Off handshaking supported. Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X andamp; Linux 2.40. Size: 42mm X 15mm (approx) . Weight: 4g (approx). The USB side must be connected to PC or Mac. Other USB devices like a digital camera, scanner and printer is not allowed.
Read More
Specifications
In The Box
1
General
brand
Robotbanao
Model Number
Micro SATA Cables USB to Serial TTL CP2102 UART Port Module Machine Upgrade STC Adapter Board
Type
Micro Controller Board
ROHS Complaint
Yes
Material
Plastic
Dimensions
Width
0.5 cm
Height
50 cm
Weight
150
Power Features
Battery Type
NA
No Of Batteries
NA
Battery Size
NA
Power Source
DC
Other Power Features
NA
Warranty
Warranty Summary
Na
Service Type
Na
Covered in Warranty
Na
Not Covered in Warranty
Na
