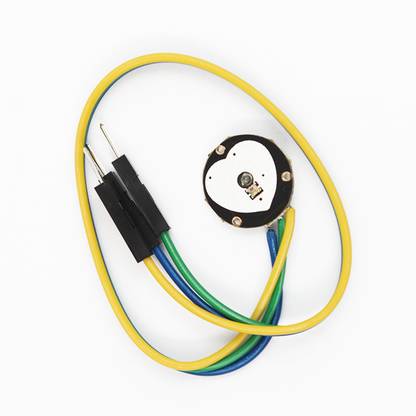

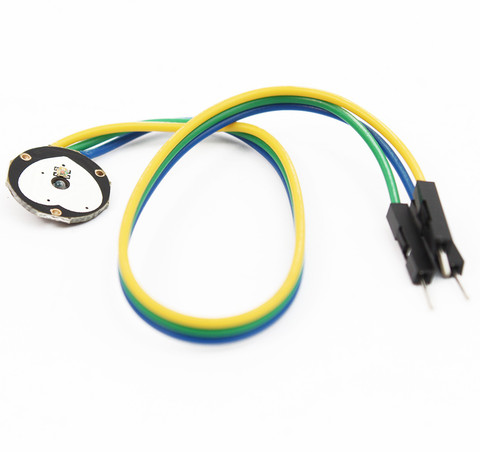

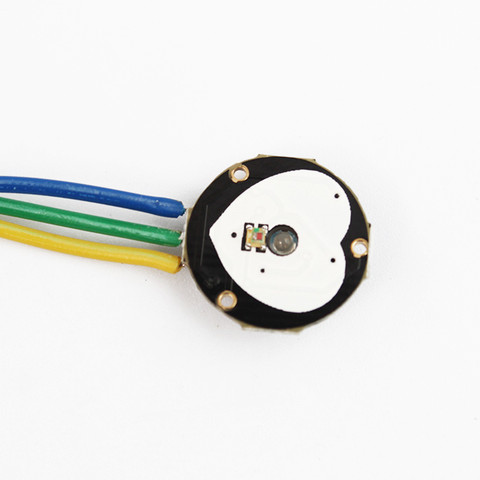

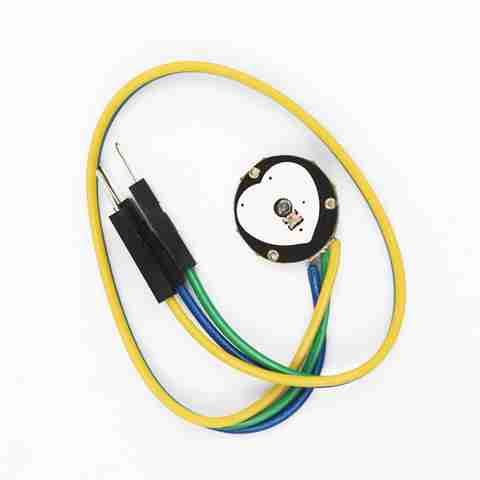

Robotbanao Pulse Heart Rate Sensor Module, Educational Electronic Hobby Kit

Heart Rate data can be used in many Electronic design and microcontroller projects. But the heart rate data is difficult to read, however, the Pulse Sensor Amped help us to read heart rate. The Heart Beat Pulse Sensor Amped is a plug-and-play heart-rate sensor for Arduino. It can be used by students, artists, athletes, makers, and game & mobile developers who want to easily incorporate live heart-rate data into their projects. It essentially combines a simple optical heart rate sensor with amplification and noise cancellation circuitry making it fast and easy to get reliable pulse readings. Pulse Sensor Amped adds amplification and noise cancellation circuitry to the hardware. It's noticeably faster and easier to get reliable pulse readings. Pulse Sensor Amped works with either a 3V or 5V Arduino. Connection With Arduino Board Connect the sensor’s power supply pins to the Arduino board supply pin as Red – 5V, Black – GND, and Purple – A0 (analog input 0) it's over. This Analog input reading can be displayed in the serial terminal of Arduino IDE or it can be drawn as the pulse by using Processing IDE.WORKING OF PULSE SENSOR - The heart rate sensor measures your heart rate in Beats per Minute using an optical LED light source and an LED light sensor. The light shines through your skin, and the sensor measures the amount of light that reflects back. The light reflections will vary as blood pulses under your skin past the light. HOW TO USE PULSE SENSOR? At the wrist, lightly press the index and middle fingers of one hand on the opposite wrist, just below the base of the thumb. At the neck, lightly press the side of the neck, just below your jawbone. Count the number of beats in 15 seconds, and multiply by four. That's your heart rate FEARURES A Color-Coded Cable, with a standard male header connectors. Plug it straight into an Arduino or a Breadboard. No soldering is required. The Pulse Sensor has 3 holes around the outside edge which make it easy to sew it into almost anything. Visualization software (made in Processing) to instantly see the output of the sensor and for troubleshooting.
