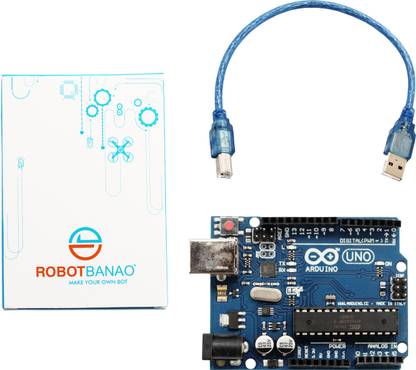

Robotbanao UNO R3 Development Microcontroller Board ATMEGA328P ATMEGA16U2 for Arduino Educational Electronic Hobby Kit
Get notified when this item comes back in stock.

Robotbanao UNO R3 Development Microcontroller Board ATMEGA328P ATMEGA16U2 for Arduino Educational Electronic Hobby Kit

Share

Robotbanao UNO R3 Development Microcontroller Board ATMEGA328P ATMEGA16U2 for Arduino Educational Electronic Hobby Kit

Be the first to Review this product
Special price
₹1,170
1,499
21% off
i
Sold Out
This item is currently out of stock
Highlights
  • Power Source: DC
  • Material: Ceramic
  • Weight: 0.1
Seller
SelectBrands
(Not Enough Ratings)
  • 7 Days Return Policy
    ?
  • See other sellers
  • Description
    UNO By Robotbanao: Microcontroller !! UNO has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. FEATURES OF THE UNO BOARD: It is an easy USB interface. This allows interface with USB as this is like a serial device. The chip on the board plugs straight into your USB port and supports on your computer as a virtual serial port. It is easy-to-find the micro controller brain which is the ATmega328 chip. It is a 16 MHz clock which is fast enough for most applications and does not speeds up the microcontroller. It is very convenient to manage power inside it and it had a feature of built-in voltage regulation.This can also be powered directly off a USB port without any external power. It has a 32 KB of flash memory for storing
    Read More
    Specifications
    In The Box
    • 1 x UNO ATMEGA328P, 1 cabel
    General
    brand
    • Robotbanao
    Model Number
    • UNO R3 Development Microcontroller Board ATMEGA328P ATMEGA16U2 for Arduino
    Type
    • Educational
    ROHS Complaint
    • No
    Material
    • Ceramic
    Additional Features
    Other Features
    • The applications of Uno include the following: Uno is used in Do-it-Yourself projects prototyping. In developing projects based on code-based control. Development of Automation System. Designing of basic circuit designs., More About Uno: Microcontroller Chip - ATmega328P, Operating Voltage - 5 V, Input Voltage(Recommended) - 7-12V, Analog I/O Pins - 6, Digital I/O Pins - 14 (of which 6 provide PWM output), PWM Digital I/O Pins - 6, Clock Speed - 16 MHz, Flash Memory - 32 KB (ATmega328P) of which 0.5 KB used by bootloader, SRAM - 2 KB (ATmega328P), EEPROM - 1 KB (ATmega328P), DC Current for 3.3V Pin - 50 mA, DC Current per I/O Pin - 20 mA, On Board LEDs - Yes, Uno Specifications: Operating Voltage - 5V. Input Voltage (recommended) : 7-12V. Digital I/O Pins - 14 (of which 6 provide PWM output). Analog Input Pins - 6
    Dimensions
    Width
    • 8 cm
    Height
    • 4 cm
    Weight
    • 0.1
    Power Features
    Battery Type
    • NA
    No Of Batteries
    • 0
    Battery Size
    • NA
    Power Source
    • DC
    Other Power Features
    • Operating Voltage - 5V. Input Voltage (recommended) : 7-12V. Digital I/O Pins - 14 (of which 6 provide PWM output). Analog Input Pins - 6
