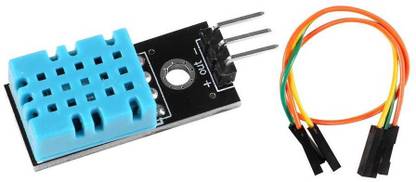

Robotly DHT11 Temperature Humidity Sensor Module Digital Temperature Humidity Sensor 3.3V-5V with Wires for Arduino Raspberry Pi (1pc) Electronic Components Electronic Hobby Kit

Description: This sensor module utilizes DHT11 as the sensitive component and has a by pass capacitor and a pull-up resistor on-board. The DHT11 is a pre-calibrated digital output temperature and humidity sensor. The single-wire wiring scheme makes it easy to be integrated to other applications. The simple communication protocol greatly reduces the programming effort required. Specification: Power-supply voltage: 3.3~5.5V DC Output: the single bus digital signal Measuring range: 20-90%RH humidity, temperature 0~50° The measurement accuracy of +-5%RH: humidity, temperature +-2 ° Resolution:1%RH humidity, temperature 1 ° Exchange ability: fully interchangeable Long-term stability: < ± 1%RH Size:28 * 12 * 7.2mm Interface Description: VCC:External3.3 V-5 V GND: External GND DO: Small board switch digital output interface, connect the microcontroller IO port Temperature Resolution: 1 °C Accuracy: ± 2 °C Measurement range:0-50 °C Humidity Resolution: 1% RH Accuracy: ± 5% RH(0-50 °C) Measurement range:20% RH-90% RH Package Included: 1*DHT11 Module 1*Dupont Cable
