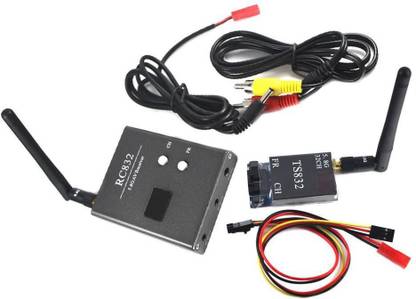

Rotobotix FPV KIT TS832 Transmitter + RC832 Receiver + 4.3 inch DISPLAY + MINI CAMERA  (Multicolor)

5.8Ghz 600mW transmitter + 32 Channel receiver. This system is Good for up to 5Km flying with the supplied antenna. An optional directional antenna can extend range to 8km+. This unit a Includes built-in microphone. The receiver unit has additional AV outputs for video recording while using FPV goggles. TS832: • Frequency: 5.8G • Power input: 7.4-16V (3S Lipo suggested) • Transmitting Power: 600mA • Video Format: NTSC / PAL Auto • Audio Bandwidth : 6.5M • Video Bandwidth: 8M • Antenna Gain: 2db • Weight: about 22g • Working Current: 220mA at 12V • Dimension: 54x 32x 10mm(excluding antenna) • Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug RC832: • Antenna Impedance: 50Ω • Antenna Gain: 2db • Video Impedance: 75Ω • Video Format: NTSC/PAL auto • Power Input: 12V • Working Current: 200mA max • Dimension: 80x 65 x15mm • Weight: about 85g • Connector: receiver module side RP-SMA jack, antenna RP-SMA plug 4.3" LCD: • 4.3-inch 16: 9, can be set to 4: 3 • Resolution: 800X480 • To Power supply: DC 9V ~ 30V wide voltage, 1.0A ~ 1.5A • The visual range: 96 * 54mm • The power consumption: 2W • The operating temperature: 0 ° C ~ + 80 ° C • The Storage temperature: -10 [deg.] C ~ + 80 [deg.] C • The Interface: 2 AV video interface, 1 standard power interface • Snow screen when no video signal available • main menu button to adjust the middle button ( main menu): contrast / color / saturation / brightness / languages / reset on the keys: + keystrokes: - Mini Camera: • Horizontal resolution: 700 lines • Video output: 1 Vp of-P, 75-ohm • Power input: the DC 12V • Lens: Original Lens 3.6MM • Operating temperature range: -10 deg.] C to 50 ℃ (maximum humidity 95%) • Storage temperature range: - 20 deg.] C to 60 ℃ (maximum humidity 95%) Features: • 32 channels choice to get the best transmitting quality. • Super small 200mA current for 600mW wireless transmitter power. • Compatible with A,B,E and F frequency bands • Smaller size with lighter weight. • 32 CH compatible to all FPV 5.8g receivers. • 5.8G 600mW 32 Channels AV wireless FPV transmitter • 600mW transmitter power assure approx 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna. Package Included: • 1 x TS382 transmitter • 1 x RC832 receiver • 2 x 5.8G 5DB antenna • 3 x cable
