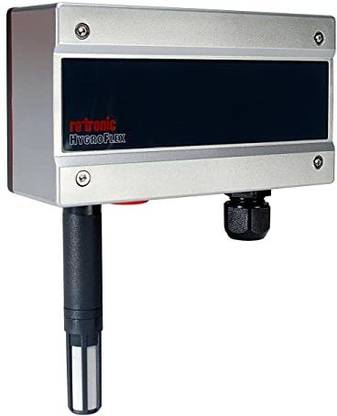

Rotronics HF420-DB5XX1XX Hygroflex Temperature Humidity Transmitter - Temperature & Humidity Sensor

Rotronics HF420-DB5XX1XX Hygroflex Temperature Humidity Transmitter - Temperature & Humidity Sensor

Price: Not Available
Currently Unavailable
Warranty
No Warranty
Description
Measures relative humidity and temperature and calculates the dew/frost point in the fields of HVAC and industry. <15 sec. Typically <3.The HF420 features well proven sensors and a robust housing. Digital signal processing ensures consistent product performance and also facilitates the task of field maintenance with features such as potentiometer free – digital calibration. Device Protection by password: Yes, Analog output signal (standard): 2 x 0…1 V, 0…5 V, 0…10 V, 0(4)…20 mA, Communication interfaces: RS-485 / USB / LAN / WLAN / MODBUS (ASCII), Service Information: Calibration interval, Probe material: polycarbonate, Filter cartridge: Polyethylene dust filter, gray, 20 um, Enclosure material: ABS, Cable connections: M16 cable gland and screw terminals, Weight: 220 g.
Read More
Specifications
In The Box
Sales Package
  • 1 unit Universal HF420 Transmitter and Instruction manual, Instruction Manual
General
Brand
  • Rotronics
Model Number
  • HF420-DB5XX1XX Hygroflex Temperature Humidity Transmitter -
Type
  • Temperature & Humidity Sensor
Minimum Sensing Range
  • -50
Maximum Sensing Range
  • 100
Power Requirement
  • 20-28 VDC
Power Consumption
  • 4 W
Maximum Operating Temperature
  • 60 degC
Minimum Operating Temperature
  • -40 degC
Display Unit
  • Yes
Material
  • ABS Plastic
Other Features
  • Humidity range: 0-100 %RH
  • Resolution Air Chip 3000: <0.02 %rh/ 0.01K
  • Integrated sensor: Yes
Dimensions
Length
  • 15 cm
Width
  • 10 cm
Height
  • 15 cm
Weight
  • 0.5 kg
Warranty
Warranty Summary
  • No Warranty
