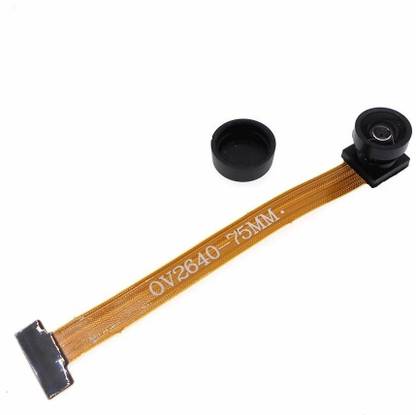

RUVI ESP32 CAM Lens OV2640|Wide Angle 160 Degree|Night Vision 850nm|75mm length | Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Plastic
Weight: 50

Description

Features : High Sensitivity for Low-Light operation Low operating voltage for embedded portable apps Standard SCCB interface Output support for Raw RGB, RGB (RGB565/555), GRB422, YUV (422/420) and YCbCr (4:2:2) formats Supports image sizes: UXGA, SXGA, SVGA, and any size scaling down from SXGA to 40x30 VarioPixel method for sub-sampling Automatic image control functions including Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB) and Automatic Black - Level Calibration (ABLC) Image quality controls including color saturation, gamma, sharpness (edge enhancement), lens correction, white pixel canceling, noise canceling, and 50/60 Hz luminance detection Line optical black level output capability Video or snapshot operation Zooming, panning, and windowing functions Internal/external frame synchronization variable frame rate control Supports LED and flash strobe mode Supports scaling Supports compression Embedded microcontroller

Specifications

In The Box

1 x CAM LENS

General

Brand	RUVI
Model Number	ESP32 CAM Lens OV2640\|Wide Angle 160 Degree\|Night Vision 850nm\|75mm length \|
Skillset	Hand & Eye Co-ordination
Type	Electronic Components
ROHS Complaint	No
Material	Plastic
Age Group	12-14 Years
Net Quantity	1
Key Features	The OV2640 CameraChip is low voltage CMOS image sensor that provides the full functionality of a single-chip UXGA (1632x1232) camera and image processor is a small footprint package., The OV2640 provides full-frame, sub-sampled, scaled or windowed 8-bit/10-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface., This product has an image array capable of operating at up to 15 frames per second (fps) in UXGA resolution with complete user control over image quality, formatting and output data transfer., All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, white pixel canceling, noise canceling and more are also programmable through the SCCB interface., It has proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, etc., to produce a clean, fully stable color image.

Dimensions

Width	2 cm
Height	2 cm
Weight	50

Power Features

Battery Type	-
No Of Batteries	-
Battery Size	-
Power Source	DC
Power Consumption	0.1
Other Power Features	-
