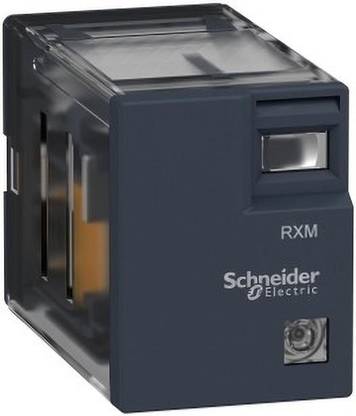

RXM Schneider 14 Pin Miniture Relay - 4 C/O - 24 V AC - 3 A Model No-RXM4LB2B7 Plug Pin  (2.1 cm)

range of product Harmony Electromechanical Relays series name Miniature product or component type Plug-in relay device short name RXM coil interference suppression Without utilisation coefficient 20 % sale per indivisible quantity 10 Complementary contacts type and composition 4 C/O contact operation Standard [Uc] control circuit voltage 24 V AC 50/60 Hz [Ithe] conventional enclosed thermal current 3 A at -40…55 °C status LED With control type Without push-button [Ui] rated insulation voltage 250 V conforming to IEC [Uimp] rated impulse withstand voltage 3.6 kV during 1.2/50 µs conforming to IEC 61810-7 contacts material Silver alloy (Ag/Ni) [Ie] rated operational current 3 A (AC-1/DC-1) NO conforming to IEC 1.5 A (AC-1/DC-1) NC conforming to IEC minimum switching current 10 mA maximum switching voltage 250 V AC 250 V DC minimum switching voltage 17 V load current 3 A at 250 V AC 3 A at 28 V DC maximum switching capacity 750 VA AC 84 W DC minimum switching capacity 170 mW operating rate <= 1200 cycles/hour under load <= 18000 cycles/hour no-load mechanical durability 10000000 cycles electrical durability 100000 cycles for resistive load average coil consumption in VA 1.2 AC drop-out voltage threshold >= 0.15 Uc AC operating time 20 ms between coil de-energisation and making of the Off-delay contact 20 ms between coil energisation and making of the On-delay contact average resistance 160 Ohm network: AC at 20 °C +/- 15 % rated operational voltage limits 19.2...26.4 V AC protection category RT I test levels Level A group mounting operating position Any position CAD overall width 21 mm CAD overall height 27 mm CAD overall depth 46 mm net weight 0.035 kg dielectric strength 2000 V AC between coil and contact 2000 V AC between poles 1000 V AC between contacts safety reliability data B10d = 100000 Environment standards EN/IEC 61810-1 (iss. 2) CE ambient air temperature for storage -40…85 °C ambient air temperature for operation -40…55 °C vibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…50 Hz)operating conforming to EN/IEC 60068-2-6 6 gn, amplitude = +/- 1 mm (f = 10…50 Hz)not operating conforming to EN/IEC 60068-2-6 IP degree of protection IP40 conforming to EN/IEC 60529 shock resistance 10 gn for opening conforming to EN/IEC 60068-2-27 5 gn for closing conforming to EN/IEC 60068-2-27
