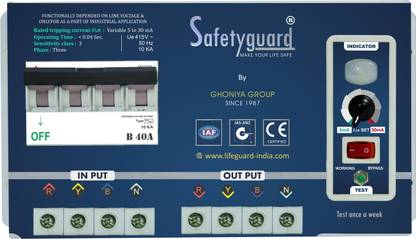

SAFETYGUARD 4 Pole ELCB + MCB, RCCB with Over voltage or High voltage Protection FPVL 40A MCB (4)

Price: Not Available

Currently Unavailable

Warranty

Fully guidance support for proper installation and faults finding in your site, If any problem call on +91 8866 221133 or +91 98980 24048

Highlights

Electric shock
High voltage
Ground faults
Power saver
Protect home

Description

GHONIA GROUP Provides a new technology since 1987 and gives the India's first electronics ELCB + MCB products which is protect against : ELECTRIC SHOCK (Human Safety), SHORT CIRCUIT UP TO 10KA, UN-wanted OVER VOLTAGE or HIGH VOLTAGE SPIKES, FROM TWO PHASING PROTECTION TO INSTRUMENTS, GROUND FAULTS, OVER LOAD PROTECTION, EARTH LEAKAGE, POWER WASTAGE. ........................Features of product: Degree of Protection=IP 20, Safety Functions ON Indications, Time Interval Siron With Timer Up to 5 Minutes, Tripping LED Indication, Variable Sensitivity as 5mA to 30mA, Emergency Safety Functions By-Pass Facility, Built In 100A Copper Conductive Connector Block, Corrosion Proof Coated Metal Cabinate. For more details please visit at www.lifeguardelectronics.com or www.lifeguard-india.com

Specifications

In The Box

Items Included

1 Piece ELCB + MCB Unit

General

Brand	SAFETYGUARD
Model Number	FPVL 40A
Model Name	4 Pole ELCB + MCB, RCCB with Over voltage or High voltage Protection
Current Rating Range	40 A
Number of Poles	4
Curve Characteristics	B
Mounting Type	Vertical
DIN Rail Mount Type	35 mm
Standard Approval	CPRI TESTED, NEAREST TO IS:12640 Part-II
Visual Trip Indicator	Yes
Suitable For	Home, Schools, Hospitals, Laboratories, Corporate Office, Industries
Leakage Current Rating	0.005 A
Prevention Capability	Yes
Operating Time	0.01 sec
Operating Voltage	440 V
Insulation Voltage	600 V

Additional Features

Key Features	Electric shock, High voltage, Ground faults, Power saver, Protect home
Other Features	Emergency Tripping Light Facility for night time tripping, Time interval siren with timer for audio indication, By-Pass Facility, Variable Leakage setting 5mA to 30mA, 100A Copper Conductive connector

Dimensions

Width	22 cm
Height	13 cm

Warranty

Warranty Summary	Fully guidance support for proper installation and faults finding in your site, If any problem call on +91 8866 221133 or +91 98980 24048
Domestic Warranty	1 Year
Covered in Warranty	Manufacturing Defect
Not Covered in Warranty	If Seal is Broken, Wrong Installation, Defects arising out of fire, Inefficient Maintenance, Physical Damaged
Warranty Service Type	Repairable
