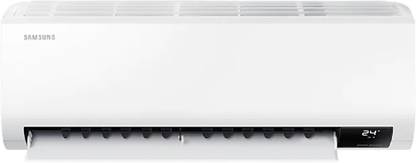

Samsung 1.5 Ton 5 Star Split Inverter AC - White (AR18BY5YAWK, Copper Condenser)

Price: Not Available

Currently Unavailable

1 Year Warranty on Product and 10 Years on CompressorKnow More

Highlights

1.5 Ton
5 Star BEE Rating 2021 : For energy savings upto 25% (compared to Non-Inverter 1 Star)
Auto Restart: No need to manually reset the settings post power-cut
Copper : Energy efficient, best in class cooling with easy maintenance.

Important Note

As a part of the "Energy Labelling Plan" of the Bureau of Energy Efficiency, the star rating of this Air Conditioner from 1st July 2022 onwards will be one star lesser than its rating on 1st Jan 2018 to 30th June 2022.

Description

Specifications

Body And Design Features

Other Body and Design Features

Plain White Design

Services

Installation Details	Split Air-Conditioners: -Drilling holes into a brick wall to take out the pipes (excluding core cutting) -Fixing a hole sleeve & cap -Fixing & connecting indoor and outdoor units with copper pipes & installation of drainage pipes using the standard kit provided by the manufacturer -Installation of separately purchased power plug, MCB & power stabilizer -Temperature & gas pressure testing -Demo of the product Window Air-Conditioners: -Installing the AC as per the specifications/requirements -Connection to separately purchased stabilizer/power point in the range of the power cord provided by the manufacturer -Demo of the product Note: Charges are to be paid directly to the Brand/Jeeves authorized technician at the time of installation.
Technician Visit Details	Authorized Service Engineer will do the following: -Repair or change the defective part -Provide replacement to the customer in case part or product is not repairable (only after replacement request approved)
Uninstallation Details	For returns, the uninstallation process includes: - Authorized service engineer visiting the customer's location - Uninstalling the product - Packing the item - Picking up the product

Performance Features

Indoor Noise Level	High - 45 dB, Low - 24 dB
ISEER	4.03 W/W

Warranty

Warranty Summary	1 Year Warranty on Product and 10 Years on Compressor
Warranty	1 Year
Covered in Warranty	All Parts, Excluding Air Filter or Front Grill and Plastic Parts (After Installation). The Warranty Covers Defective Materials and Workmanship from the Date of Purchase. Beyond the First Year of the Warranty Period, Only the Compressor Repair (Excluding Gas Filled Inside the Compressor) Will be Provided Free of Cost for 10 Years from the Date of Purchase. Refrigerant Gas is Having Only One Year Warranty.
Not Covered in Warranty	Parts: Air Filter or Front Grill is Not Covered in the Warranty After Installation. The Warranty does not Cover Installation or Demonstration. Accessories External to the System. Damage Parts. The Product is Not Used According to the Instructions Given in the Instruction Manual. Defects Caused by Improper Use as Determined by the Company Personnel. Modification or Alteration of Any Nature is Made in the Electrical Circuitry or Physical Construction of the Set. Site (Premises Where the Product is Kept) Conditions that do not Confirm to the Recommended Operating Conditions of the Machine. Defects due to Cause Beyond Control Like Lightning, Abnormal Voltage, Acts of God, While in Transit to Service Centers or Purchaser's Residence.
Warranty Service Type	Technician Visit

Air Flow & Filter Features

Other Air Flow Features	2 Way Swing. Air Direction Control (Left/Right) - Manual. Air Direction Control (Up/Down) - Auto.
Anti-bacteria Filter	No
Dust Filter	Yes
Other Filter Features	HD Filter, Auto Clean (Self Cleaning).

General

In The Box	1 Indoor Unit, 1 Outdoor Unit, Remote Control, User Manual, Warranty Card
Brand	Samsung
Model Name	AR18BY5YAWK
Type	Split
Capacity in Tons	1.5 Ton
BEE Star Rating	5 Star BEE Rating
BEE Rating Year	2021
Color	White
Cooling Capacity	5000 W
Compressor	BLDC Compressor
Dehumidification	Yes
Remote Control	Yes
Refrigerant	R32
Operating Modes	Auto Mode, Fast Cool, Good Sleep, Fan Mode, Quiet Mode.
Condenser Coil	Copper
Air Conditioner Technology	Inverter
Wi-Fi Connectivity	No

Dimensions

Indoor W x H x D	105.5 cm x 29.9 cm x 21.5 cm
Indoor Unit Weight	11.4 kg
Outdoor W x H x D	88 cm x 63.8 cm x 31 cm
Outdoor Unit Weight	37 kg
Other Dimensions	Indoor Gross Dimension (W x H x D) (mm): 1115 x 290 x 375, Outdoor Gross Dimension (W x H x D) (mm): 1023 x 729 x 413, Indoor Gross Weight (kg): 13.5, Outdoor Gross Weight (kg): 42.6

Disclaimer

The manufacturing date can be earlier than the model year.

Power Features

Power Requirement	AC 230 V, 50 Hz
Annual Electricity Consumption	1835 Units
Operating Current	5.6 A

Convenience Features

Auto Restart	Yes
Other Convenience Features	Convertible 5 in 1 Modes. Cooling Capacity (kW): 5.00. Cooling Capacity (Btu/hr): 17061. Cooling Capacity (Min - Max) (kW): 1.25 - 6.50. Cooling Capacity (Min - Max) (Btu/hr): 4265 - 22179. ISEER (W/W): 5.20. EER (Cooling, Btu/hW): 13.76. Outdoor Noise Level: 47 dB. Power Source Phase: 1. Loading Quantity (20/40/40Hft without Pipe): 69/144/162. Max Piping Length (m): 30. Max Piping Height (m): 15. SVC Valve Liquid (ODxL): 6.35. SVC Valve Gas (ODxL): 12.7. Moisture Removal (l/hr): 2.0. Cooling Air Circulation (Cubic Meter Per Minute): 19.3. Refrigerant (Charging, kg): 1.10. Refrigerant (Charging, tCO2e): 0.74 tCO2e. Low Ambient Cooling (DegreeC): 15 - 52. Outdoor Unit (Anti-corrosion Fin): Yes. Air Flow Control Step (Cool/Fan): 5/4. Filter Cleaning Indicator. Indoor Temp. Display. Display On/Off. Beep On/Off. 24-Hour Timer.
Additional Features	Non Windfree Geo Plain. 100% Copper Condenser. Customized Energy Control with a 5 Step Mode: 5 Step Convertible Cooling. Easy to Clean Filter: Easy Filter Plus. Simply Cleans Itself - Automatically: Auto Clean.
