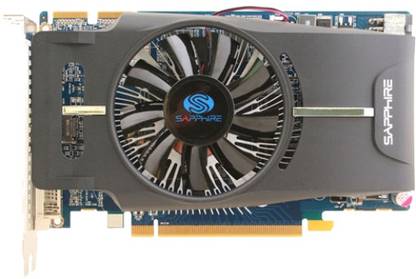

Sapphire Radeon HD 6770 GDDR5 1 GB AMD/ATI Chipset 128 bit 775 MHz Graphics Card

Sapphire Radeon HD 6770 GDDR5 1 GB AMD/ATI Chipset 128 bit 775 MHz Graphics Card

Price: Not Available
Currently Unavailable
Warranty
Customer contacts Flipkart for support, In case of product failure, please return all the original accessories along with proof of purchase. All replacement product may include new, reworked or refurbished product and parts. Any repaired, replaced or exchanged products will be covered for the remaining period of the original Warranty
Highlights
  • 775 MHzClock Speed
  • Chipset: AMD/ATI
  • BUS Standard: PCI Express 2.0
  • Graphics Engine: Radeon HD 6770
  • Memory Interface 128 bit
Important Note
  • The packaging of this product may vary from what is shown in the image.
Specifications
In The Box
Sales Package
  • System connector to connect the Graphic card, Graphic card, Driver cd & Manual book.
General
Brand
  • Sapphire
Graphics Engine
  • AMD/ATI Radeon HD 6770
GPU Clock
  • 775 MHz
Shader
  • Shader Version 5
Processors and Cores
  • 800 Stream Processor
GPU Manufacturing Process
  • 40 nm
Bus Standard
  • PCI Express 2.0
Cooling and Heatsink
  • Fan: 1, Heatsink
Model ID
  • Radeon HD 6770
Power Supply Required
  • 450 W
Memory
Memory
  • 128-bit, 1 GB GDDR5 Memory with 4000 MHz
Display
Maximum Resolution
  • 2560 x 1600 (Digital)
Technologies Supported
Graphics Technologies Supported
  • Microsoft DirectX v11, Open GL Optimization v4.1, AMD CrossFireX supported
Connectivity
DVI and HDMI Interface
  • Yes x Dual Link DVI Out
Mini HDMI
  • 1 x Mini HDMI Output
Other Interface
  • 1 x Display Port Out
HD Content Support
  • HDCP Support
System Requirements
Supported OS
  • Windows 7, Windows XP
Other System Requirements
  • PCI Express Based PC is Required with One X16 Lane Graphics Slot, 2X75 Watt 6-pin PCI Express Power Connector, 1X75 Watt 6-pin PCI Express Power Connector, 1 GB Minimum of System Memory, CD-ROM Drive, DVD Drive, Blu-ray Drive, HD DVD Drive, 600 W Power Supply is Recommended for CrossFireX
Included Technologies
Software Included
  • Driver CD
Other Features
Additional Features
  • AMD Eyefinity, AMD HD3D Technology, AMD Catalyst Control Center, Accelerated Video Transcoding, Dolby TrueHD and DTSHD Master Audio Support, 2nd Generation TeraScale Engine, Anti-aliasing Features, Physics Processing Support, AMD PowerPlay, Enhanced Unified Video Decoder 3 (UVD 3), Enhanced Internet Browser Applications, AMD App Acceleration, Process - 0, 04, Transistor Count - 1040 Mio, Core Frequency, Standard Cooling - Active, Standard Slot Solution - Dual, Memory Optimization - Hyper Z HD, Full Screen Anti-Aliasing - Smoothvision HD Adaptive AA, HDR (10:10:10:2) - 16-bit Integer Or Floating Point, Adaptive De-Interlace - Video Shader HD, Video Acceleration - MPEG-2, MPEG-4, DivX, WMV9, VC-1, H.264, MVC, HDMI Modes - 480p, 720p, 1080i, 1080p, Native Display Support - 10-bit, 3D Graphics Resolution - 3 X 1920 X 1200, Power Draw Idle - 18 W, Power Draw Max - 108 W
Warranty
Warranty Type
  • Limited
Warranty Summary
  • Customer contacts Flipkart for support, In case of product failure, please return all the original accessories along with proof of purchase. All replacement product may include new, reworked or refurbished product and parts. Any repaired, replaced or exchanged products will be covered for the remaining period of the original Warranty
Covered in Warranty
  • Manufacturing defects are covered
Not Covered in Warranty
  • Products that are defaced or physically damaged and modified by customer. Products that become Non-functional due to customer improper use. Products that cannot be verified as Sapphire products. Products that do not have a matching serial number between the product and the original receipt. Products not sold from our official distributors or resellers GPU or ASIC Device (VGA) is sensitive to thermal (heat) Issue. The Heat Sink or Fan is designed to meet the requirements for reliability of the product and the Warranty is rendered invalid if the product is dismantled or the Heat Sink or Cooler Fan are removed as this may causes damage to the GPU or ASIC Device. Non-compliance will cause the Warranty of the product to be Void and Repair will be at the users cost.
Service Type
  • Carry In
Domestic Term
  • 3 Years
Ratings & Reviews
4.7
44 Ratings &
16 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 33
  • 10
  • 0
  • 0
  • 1
5

GREAT FOR GAMMMMMEeeeeessssssSSS.....

Going to buy a card to play latest games at full glory this card is for youuuuuuuuu IST OF ALL I NEED to tell about some gimmics in gfx cards 1= if you think a 2gb card will perform double as a 1gb card you are a fool performance is only base on the stream processors or cores and clock speed of a card surely if you have a giant monitor res such as 2506x760 you absolutely need a 2gb version but if you have low res monitors such as 1600x760 or below a 1gb v...
READ MORE

Faiz Rahman

May, 2012

4
1
Report Abuse
4

A very Powerful card with some bad things...

I have bought this card from flip kart which is able to play all my games in ultra settings like crysis 2, battlefield 3,nfs the run and many more,,, it has 755 MHz clock speed (default),it brings a new life on my PC..Now, my W.E.I (both ratings) are 7.2/7.9 in P4 Dual core C.P.U with 4G.B R.A.M ,which is awesome.. but there are some defects..
1. Become very heated in few sec.2.this card will occupy one PCI-E (1x) or PCI slot,which is too bad
So try to add a powerful case fan to keep your PC...
READ MORE

Abhishek Kumar

Certified Buyer

Apr, 2012

4
1
Report Abuse
5

This card gives you a run for the money (excellent/best card for 7000/- range)

My comp comfig is

intel core 2 duo @ 2.60GHz and ram 2GB

case 1: with windows xp os

after installing drivers given with the card, when comp is switched on it still says update your drivers. But all games work, irrespective of driver update.

case 2: with windows 7 (awesomeness!!! \m/)

drivers perfect, it runs smoothly, no problem at all. while running heavy games on high graphic config it heats up a bit like any other graphic card. crysis 2, cod mw3, battlefield 3, all work with out any g...
READ MORE

sandman

Certified Buyer

Sep, 2012

1
0
Report Abuse
4

Classy

1.Good Card I have tried mafia 2,fifa,nfs run,acr all worked great in high settings ..
2.you must have good psu and cooling system for Buying this card.
3.Card gets heated upto 75 c if we play acr in high setting even when the fan speed is overclocked to 100% in case of non branded psu (450 watts) .
4.So better to have a good psu and cooling system.
5.Card Occupies two pci slot that bad.
6.power connector cable ,graphics card,driver cd,manuals included.
7.If you have good psu then this is "TH...
READ MORE

Saravanakumar

May, 2012

1
0
Report Abuse
5

aWESOME CARD... vALUE FOR mONEY

It iS An aWESOmE cARd BeTTEr tHAn nVIDIA ONEs.

I sUGGEsT aLL gAMeRS tO BUY tHIs PrOdUcT aS It iS vERy mUCh aFFORdAblE TO aLL.

I aM pLAyINg ASSASIn'S cREED REVELATION, nfs RUN, bATTLEfIELD 3, mODERn WArFARe 3 AND mANY MORE.

:):):)
READ MORE

Sumit Chatterjee

Feb, 2012

1
4
Report Abuse
5

You have a budget around 7 K ....Go for this one!!!!!!!

I have searched almost entire web for reviews about graphic cards and this one is best for the price tags
Pro&Cons from my experience..
PROS-
1.You can play almost any game at ultra settings (battlefield for eg)
2.Don't think it is only 1 GB so it will not perform well this graphic card has GDDR5 memory which i just as twice as fast compare to GDDR3 take a look at any graphic card which has 2 GB memory i'm sure it will have GDDR3 memory. so no problem with memory(You got my point)
3.this one ...
READ MORE

Siddharth Kothotya

Certified Buyer

Jun, 2012

0
0
Report Abuse
5

card of my life

great card u see.when i got it i was shocked when i noticed that i can play games like mass effect3 , skyrim 5,saints row 3 ,cod 8 ,cod 7, crysis 2, l.a.noire,witcher 2 .etc, all in max graphics set up and believe me this graphics card can certainly give u a perfect gaming experience in ur life.
READ MORE

Subhro Biswas

May, 2012

0
0
Report Abuse
4

Average Performance

Powercolor HD6770 is far better than Sapphire HD6770 ,go for Powercolor if u spend 6500/- to 7000/- on Graphic Card ,Powercolor Made Cards only using AMD Technology & only Powercolor & ASUS made best cards, xfx is good ,Sapphire & HIS made average quality cards,

research completely before spending money on this crapy card.......
READ MORE

Sharad Sharma

Mar, 2012

0
6
Report Abuse
5

Best mid-range card at this price!

1. Works well with a 450W PSU.
2. temperature at idle - 38C-40C and while playing games - 60C-70C
and this too while the setting of the fan is at auto. If you set the fan at 100% speed the temp doesn't rise above 55C! (You should make sure your cabinet is well ventilated)
3. It was a bit difficult for me to fit the card in te cabinet. The back panel was not properly aligned with the card. Had to make some minor modifications in the cabinet to fit it. This shouldn't be a problem if you have a ...
READ MORE

Shoaib Merchant

Certified Buyer

Apr, 2012

1
0
Report Abuse
5

WHAT A GPU!! THIS WILL PLAY ALL LATEST GAMES AT ULTRA SETTINGS IN NEXT 5 YEARS WITHOUT ANY PROBLEMS!!

purchasing it from flipkart.com was the best thing.
easy installation, great packing.. this card is a must buy for people who really really really wanna play games like BF3, MW3, NFS RUN, MAX PAYNE 3 AND ALL GRAPHICS HUNGRY GAMES OUT THERE IN THE MARKET.

update the driver to latest version before startin to play.. download it from amd.com

installation is a piece of cake.. place the card in the slot on mobo, connect power cord and PCIe connector and ur done.

no heating issues.. this card ru...
READ MORE

Sagar Chouhan

Certified Buyer

Sep, 2012

0
0
Report Abuse
+
