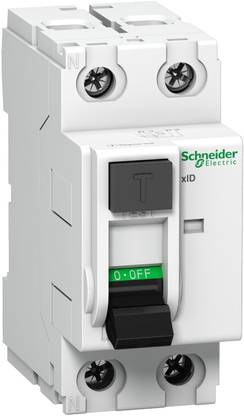

schneider RCCB 63A DP 100mA ACTI9 A9N16209 MCB  (2)

Details: Range: Acti 9 Product Name: Acti 9 xID Product or Component Type: Residual current circuit breaker (RCCB) Device Short Name: XID Poles Description: 2P Neutral Position: Left [IN] Rated Current: 63 A Network Type: AC Earth-Leakage Sensitivity: 100 mA Earth-Leakage Protection Time Delay: Instantaneous Earth-Leakage Protection Class: Type AC Rated Breaking and Making Capacity: 630 A conforming to EN/IEC 61008-1 Suitability for Isolation: Yes Offer Sustainability Sustainable offer status: Green Premium product RoHS (date code: YYWW): Schneider Electric declaration of conformity REACh: Reference not containing SVHC above the threshold Product environmental profile: Product Environmental Profile Product end of life instructions: Need no specific recycling operations Complementary Network Frequency: 50 Hz [UE] Rated Operational Voltage: 230...240 V AC 50 Hz [UI] Rated Insulation Voltage: 500 V AC 50 Hz [UIMP] Rated Impulse With stand Voltage: 6 kV Contact Position Indicator: Yes Control Type: Toggle Local Signalling: ON, OFF, fault trip Mounting Mode: Clip-on Mounting Support: DIN rail Comb Busbar and Distribution Block Compatibility: Downside : biconnect Connection Pitch: 18 mm : Between phases 9 mm Pitches: 4 Height: 81 mm Width: 36 mm Depth: 75 mm Product Weight: 210 g Colour: White Mechanical Durability: 4000 cycles Electrical Durability: 4000 cycles Locking Options Description: Padlocking device Connections - Terminals: Tunnel type terminals top or bottom 1...35 mm² rigid@Tunnel type terminals top or bottom 1...25 mm² flexible Wire Stripping Length: 14 mm top or bottom Tightening Torque: 3.5 N.m top or bottom
