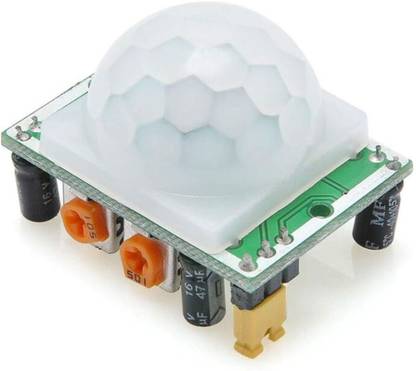

Scienticy PIR Motion Sensor Detector Module HC-SR501 with Jumper (Original) PIR Sensors

Scienticy PIR Motion Sensor Detector Module HC-SR501 with Jumper (Original) PIR Sensors

Price: Not Available
Currently Unavailable
Warranty
No.
Description
Scienticy : [A] The PIR Motion sensor module is an automatic control module based on infrared technology.....[B] The PIR Motion Sensor Detector Module HC SR501 allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to using “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensor....[C] The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It has a delay time adjustment Potentiometer and sensitivity adjustment Potentiometer. Compatible with ARDUINO, RASPBERRY PI, AVR, PIC, 8051, etc.....
Read More
Specifications
In The Box
Sales Package
  • 1
General
Brand
  • Scienticy
Model Number
  • PIR Motion Sensor Detector Module HC-SR501 with Jumper (Original)
Type
  • PIR Sensors
Minimum Sensing Range
  • 1
Maximum Sensing Range
  • 500
Power Requirement
  • 3v
Power Consumption
  • 0.1 W
Maximum Operating Temperature
  • 80 degC
Minimum Operating Temperature
  • -20 degC
Color
  • Green
Detection Angle
  • 180 Degree
Other Features
  • Infrared Sensor with Control Circuit Board....
  • The Sensitivity and Holding Time is adjustable.
  • Blockade time: 2.5s (Default)....
  • Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)....
  • Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).
Net Quantity
  • 1
Dimensions
Length
  • 3.27 cm
Width
  • 2.9 cm
Height
  • 2.5 cm
Weight
  • 0.01 kg
Warranty
Warranty Summary
  • No.
