Selec EM368-C Hydrometer

Price: Not Available

Currently Unavailable

Warranty

1 Year Manufacturer Domestic Warranty

Description

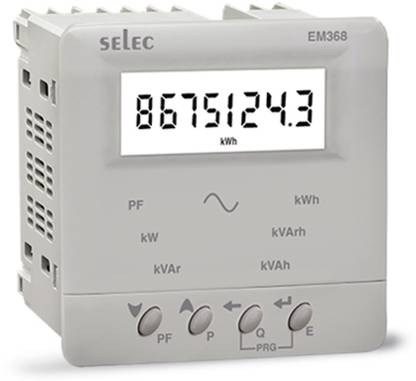

Selec Energy Kwh Meter with LCD Display & RS485 - EM368-C

Specifications

General

Additional Features

Other Features

Display Type: LCD with Backlight , Display Configuration: 8 Digits , Electrical Connection: 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W , Type of Output: Pulse Output , Communication Protocol: RS485 and MODBUS RTU , Features: Phase Angle Detection, Password Protection, Memory Retention, Power (Active / Reactive), Energy (Active / Reactive / Apparent) , CT Primary: 1/5A to 10kA (Programmable for Any Value) , CT Secondary: 1 / 5A (External CT Must be Connected for Current More Than 5A) , PT Primary: 100V to 500kV (Programmable for Any Value) , PT Secondary: 100 to 500V AC (L-L) (Programmable for Any Value) , Supply Voltage: 100 to 240V AC (-15% to +12%) (45/65Hz) , Mounting Type: Panel Mount , Size: 96 x 96mm , Certification: CE, UL Listed

Dimensions

Length

Warranty

Warranty Summary	1 Year Manufacturer Domestic Warranty
Service Type	Customer Needs to Take the Product to the Authorized Service Center
Covered in Warranty	Warranty of the product is limited to manufacturing defects only.
Not Covered in Warranty	Warranty does not cover any external accessories (such as battery, cable, carrying bag), damage caused to the product due to improper installation by customer, normal wear and tear to magnetic heads, audio, video, laser pick-ups and TV picture tubes, pane
