EASTRA Arduino Nano Micro Controller Board Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Specifications

In The Box

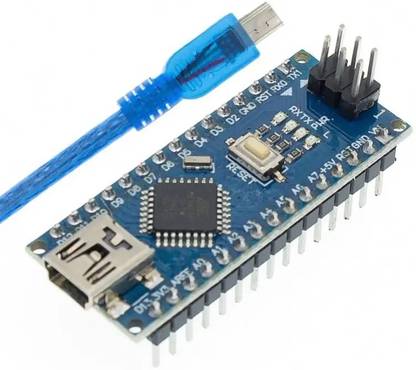

Kit Contains: Soldered Nano compatible, Nano Cable Mini USB to USB ( cable colour might change from the one shown in picture) Note: Need to install CH341SER driver Microcontroller Atmel ATmega328 Operating Voltage (logic level): 5V Input Voltage (recommended): 7V ~ 12V Input Voltage (limits): 6V ~ 20 V Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current per I/O Pin: 40mA Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader) SRAM: 2KB (ATmega328) EEPROM: 1KB (ATmega328) Clock Speed: 16MHz

General

Dimensions

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	12 digital input/output ports D2-D13., 8 analog input ports A0-A7., 1 pair of TTL level serial port transceiver ports RX/TX., 6 PWM ports, D3, D5, D6, D9, D10, D11., Using Atmel Atmega168P-AU microcontroller., Support USB download and power supply., Support external 3.3V-12V DC power supply., Support lithium battery and 9V battery power supply., Support ISP download.
