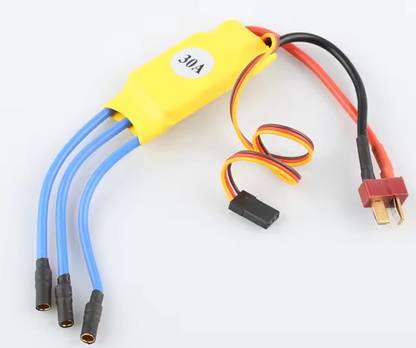

EASTRA POWER 30A (AMP) RC Brushless Motor Electric Speed Controller ESC Yellow Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC, AC
RoHS Compliant
Material: Aluminium
Weight: 10

Description

• CURRENT : 30A • BEC: 3A • Colour : Yellow • Li-Poly: 2-3 • CONSTANT CURRENT: 30A Max 40A<10s • Ni-Mh/Ni-CD: 4-10 Ni-Mh • Li-Poly 2-3 CELLS; Ni-MH 4-10 CELLS Auto Detect • Break On/Off • APPLICATION: Multirotors, Rc Airplanes, etcCurrent 30A Voltage range: 4V-16V Color: yellow Good welding plug ,weld plug more convenient Connect the motor end of the welding head is three 3.5mm female banana Connect the battery terminal is welded T plug male

Specifications

In The Box

30A ESC Welding T Plug Brushless Multicopter Motor Speed Controller RC BEC ESC T-rex 450

General

Brand	EASTRA
Model Number	POWER 30A (AMP) RC Brushless Motor Electric Speed Controller ESC Yellow
Skillset	Creativity & Imagination
Type	Electronic Components
ROHS Complaint	Yes
Material	Aluminium
Age Group	16+ Years
Lights	Yes
Sound	No
Suitable For Gifting	NA
Gift Pack	No
Key Features	Continuous 2A, (instant 3A) 2LIPO 4-5 micro servos 3LIPO 3-4 micro servos, Automatic selection 2-3LIPO, respectively protection voltage is 6V / 9V Automatic selection NIMH, each section protection voltage is 0.8V Safe Boot, throttle position does not prohibit start-up Temperature protection, surface temperature down to 110 degrees Failsafe, no signal one second after shutdown., Performance XXD 30A Brushless ESC Motor Speed Controller with T plug connector for RC Fixed Wing Airplane

Dimensions

Width	3 cm
Height	1 cm
Weight	10

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC, AC
Other Power Features	30A BLDC ESC ELECTRONIC SPEED CONTROLLER,Color: Yellow or Red,CURRENT: 30A BEC: 3A,Li-Poly: 2-3,Ni-Mh/Ni-CD: 4-10 Ni-, 30A Max 40A<10s,Li-Poly 2-3 CELLS; Ni-MH 4-10 CELLS Auto-Detect,Break On/Off Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell lipo; APPLICATION: Multirotors, Rc Airplanes, etc., voltage is 6V to 12V, BEC is 2A, constant current is 30A (maximum 40A is less than 10 seconds).

Additional Features

Motor Speed Controller ESC FPV Drone Helicopter Boat Brushless Motor For RC
