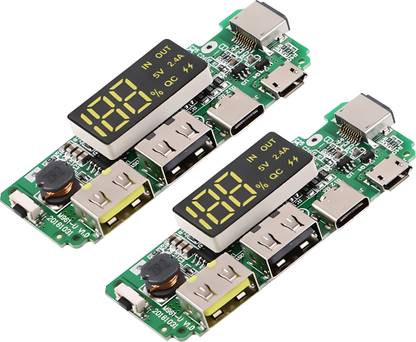

shockley electronics 18650 Lithium Battery Charging Module 5V 2.4A USB-C PowerBank LED Display (2 PC) Multipurpose Controller

shockley electronics 18650 Lithium Battery Charging Module 5V 2.4A USB-C PowerBank LED Display (2 PC) Multipurpose Controller

Price: Not Available
Currently Unavailable
Description
Specifications: Size: 6.5 * 2.5 * 0.1cm Weight: 10.8g IR of PCM : ?65 m? Allowed 0V change: Yes Constant current: 2.4A Dual output current: 5V 2.4A Input voltage B+ to B-: 3.0 - 4.2V Charging cable: support Iphone and Android three USB Cables Button function: Press and hold the button after standby, the LED digital screen displays the power Prevent Overcharge Protection: Detection voltage: 4.20±0.05V Release voltage: 4.100±0.05V Detection delay time: <200 msPrevent Overdischarge Protection: Detection voltage: 3.0±0.10V Release voltage: 3.10±0.10VDetection delay time: <100 msShort Circuit Protection: Short detection delay time: <50 uS Release Conditions: Cut off load Note: Actual color may be slightly different from the image due to different monitor and light effect. Please allow minor deviation due to manual measurement. We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.
Read More
Specifications
In The Box
Sales Package
  • Battery charging module
General
Brand
  • shockley electronics
Model Number
  • 18650 Lithium Battery Charging Module 5V 2.4A USB-C PowerBank LED Display (2 PC)
Type
  • Wired
Power Source
  • Battery
Material
  • PCB
Color
  • Black
Bluetooth Enabled
  • No
Wifi Enabled
  • No
Compatible Devices
  • Batteries
Range
  • 2
Key Features
  • This module is a portable backup power supply with an input that matches the 5.0V adapter to charge the internal battery. Use built-in battery for portable device to provide 5.0V/3.0A USB2.0 supply output for external devices., The LED digital screen displays the current battery charge while charging.When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display).The system will provide an accurate battery indication after a complete charge and discharge., Charging cable: support three USB data cable charging, including Iphone and Android., overcharge protection, overdischarge protection, short circuit protection, constant current.Suggest Working Conditions:Max continuous charge/discharge current 1.5/2.4A,working temperature: -5?45?.
Dimensions
Width
  • 1 cm
Height
  • 1 cm
Depth
  • 1 cm
