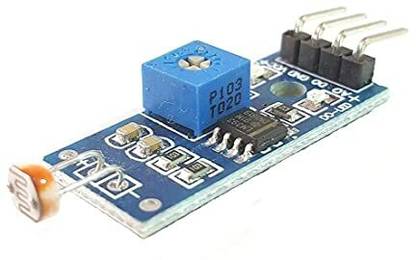

SHOKITECH Digital LDR Module – 4Pin Electronic Components Electronic Hobby Kit

This LM393 Photosensitive Light-Dependent Control Sensor LDR Module is using a high-quality LM393 voltage comparator. Easy to install using the sensitive type photosensitive resistance sensor the comparator output signal gives a clean and good waveform. Driving ability is 15mA with the adjustable potentiometer, it can adjust the brightness of the light. The working voltage is 3. 3V to 5v. Where output is a digital switch output. Since this module is sensitive to light, usually used for detecting the ambient brightness and light intensity. You can use this board digital output DO port drive relay module directly(our store on sale these relay modules), and can also use it as a photoelectric switch. The analog output ao connects with the ad module and it can get more precise light intensity value through the ad-converter. Interface Pin VCC: +ve power supply. GND: Ground. D0: Digital output signal. A0: Analog Output Signal. Features LDR module 4 PIN Operating voltage 3.3V-5V Signal output indicator light. LDR module 4 PIN Able to detect ambient brightness and light intensity Adjustable sensitivity (via blue digital potentiometer adjustment)
