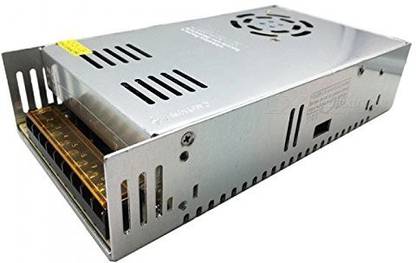

shoptron DC Power Supply SMPS Best for Industrial Application CCTV Camera (24V 10A) Power Supply Electronic Hobby Kit

shoptron DC Power Supply SMPS Best for Industrial Application CCTV Camera (24V 10A) Power Supply Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • RoHS Compliant
  • Material: Aluminium
  • Weight: 0.52
Description
High efficiency, long life, and high reliability Low dc ripple, high efficiency low operation temperature & long performance life Excellent insulation property, high dielectric strength 100% full-load burning test Dimension: 180*110*50 (Approx.) Input: AC input voltage range(V):AC 110V/220V±15% (switch replacement) Input current(A):6.5A /115V,4A /230V Frequency (Hz):50/60Hz Efficiency:87% Typ(230VAC Full Load) Inrush current(A):25A/115V 50A/230V cold start Leakage current(mA):<3.5mA/240VAC Output: Output Voltage(V):+24VDC Voltage Regulation:±10% Output Current(A):10A Current Range (A):0-10A Rated Power(W) :240W Start time, hold-up time(ms):Ton?200ms,Td?30ms @230Vac Full Load Rise time(ms):Typ:100ms @230Vac Full Load Ripple/Noise(mVp-p):150mVp-p Protection: Over voltage Protection: >115%-135% Rated output voltage Over load Protection: >105%-150% Auto recovery Short circuit Protection: Latched
Read More
Specifications
In The Box
  • smps
General
Brand
  • shoptron
Model Number
  • DC Power Supply SMPS Best for Industrial Application CCTV Camera (24V 10A)
Skillset
  • Time Management
Type
  • Power Supply
ROHS Complaint
  • Yes
Material
  • Aluminium
Age Group
  • 16+ Years
Dimensions
Width
  • 15 cm
Height
  • 4.5 cm
Weight
  • 0.52
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • NA
