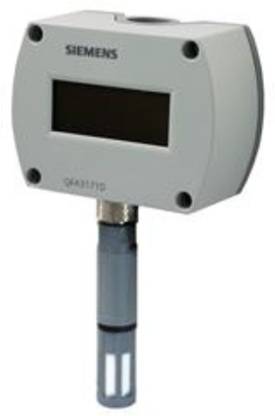

    Siemens QFA3160D Display Temperature & Humidity Sensor

    Siemens QFA3160D Display Temperature & Humidity Sensor

    Price: Not Available
    Currently Unavailable
    Warranty
    NA
    Description
    Siemens QFA3160D Humidity Sensor is intended for use in ventilation and air conditioning plants where high accuracy and short response times are required to measure relative humidity. The measurement range covers the entire humidity range from 0 to 100 %. Applications: Foodstuff, Medicine, Restaurant, Transportation, and industries by the HACCP system certification.
    Read More
    Specifications
    In The Box
    Sales Package
    • Sensor, Installation Instructions
    General
    Brand
    • Siemens
    Model Number
    • QFA3160D Display
    Type
    • Temperature & Humidity Sensor
    Minimum Sensing Range
    • 0
    Maximum Sensing Range
    • 100
    Power Requirement
    • AC 24 V, DC 13.5 to 35 V
    Power Consumption
    • 24 W
    Maximum Operating Temperature
    • 70 degC
    Minimum Operating Temperature
    • -40 degC
    Color
    • White
    Display Unit
    • Yes
    Other Features
    • Operating voltage AC 24 V / DC 13.5…35 V
    • Signal output DC 0…10 V / 4…20 mA for relative humidity and temperature
    • Very high measuring accuracy across the entire measuring range
    • Capacitive humidity measurement
    • Function test
    • Range of use 40…70 °C / 0…100 % r. h.
    • with LCD display 25…+70 °C / 0…100 % r. h.
    Dimensions
    Length
    • 14.4 cm
    Width
    • 6.2 cm
    Height
    • 3.9 cm
    Weight
    • 0.152 kg
    Warranty
    Warranty Summary
    • NA
