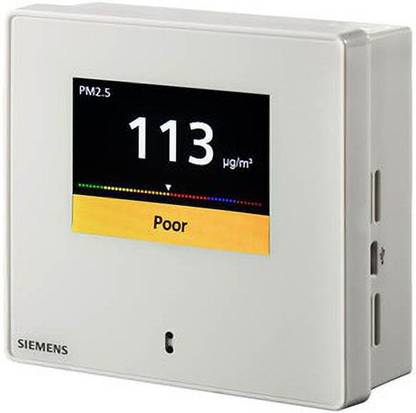

Siemens QSA2700D Fine Dust Sensor- Air Quality Meter
Price: Not Available
Currently Unavailable
Warranty
0
Description
siemens® QSA2700D Fine Dust Sensor is designed to measure and transmit indoor concentrations of PM2.5 and PM10. This wall-mounted product has variants, with or without displays, and can connect via voltage output or Modbus directly to Siemens BT controllers as well as many third-party controllers. This air quality monitor measures PM2.5 and PM 10 are considered the most hazardous pollutant to human health due to their tiny sizes that can be inhaled and absorbed.
Siemens® QSA2700D Fine Dust Sensor is designed to measure and transmit indoor concentrations of PM2.5 and PM10. it’s hard to determine whether our air quality is healthy or not, but the Fine Dust Sensor senses particulate matter PM2.5 and PM 10 in real-time.
Applications: IT Facilities, Software Parks, schools, colleges, Universities, AirPort, Cleanroom/operating room monitoring.
Read More
Specifications
General
Model Number
QSA2700D Fine Dust Sensor-
HCHO Range
0
TVOC Range
0
PM1.0/PM2.5/PM10 Range
0/0 to 500 ug/m³/
PM1.0/PM2.5/PM10 Accuracy
0…500 ?g/m3, 0…500 ?g/m3
Display
LCD Single Line
Power Source
5 v power connection for display only
Operating Temperature
0°C to 50°C
Storage Temperature
-20 to 70 °C
Other Features
0…10 V and Modbus output., Configurable Modbus parameters., Plug & play configuration for Siemens ClimatixTM controller., QSA2700: – 3-color LED service indication.
Dimensions
Length
86 mm
Width
86 mm
Height
30 mm
Weight
140 g
Warranty
Warranty Summary
0
